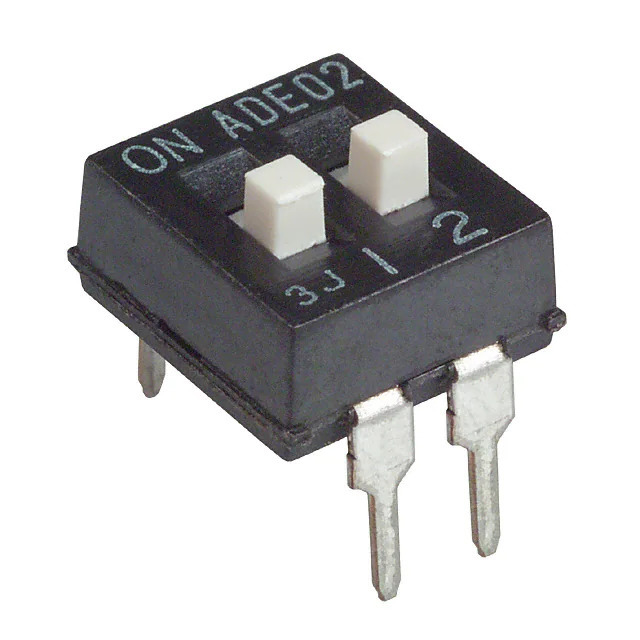

Same model may have multiple batches, images only for reference.
1825057-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1825057-1

Part No 1825057-1
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series ADE
Package Tube
Product Status Active
Circuit SPST
Number of Positions 2
Current Rating (Amps) 100mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.228" (5.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.278" (7.06mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1825057
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376357-1825057-1
Ultra Librarian 3D Model Ultra Librarian 1825057-1 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches ADE is a DIP switch designed for use in switches manufactured by TE Connectivity.

  • Temperature Range: -30°C to 85°C
  • Current Rating: 100mA
  • Voltage Rating: 24VDC
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Termination Style: PC Pin
  • Mechanical Life: 1,000 cycles
  • Material: Polyphenylene Sulfide (PPS)
  • Product Status: Active
  • Features: Washable
  • Length: 0.278" (7.06mm)
