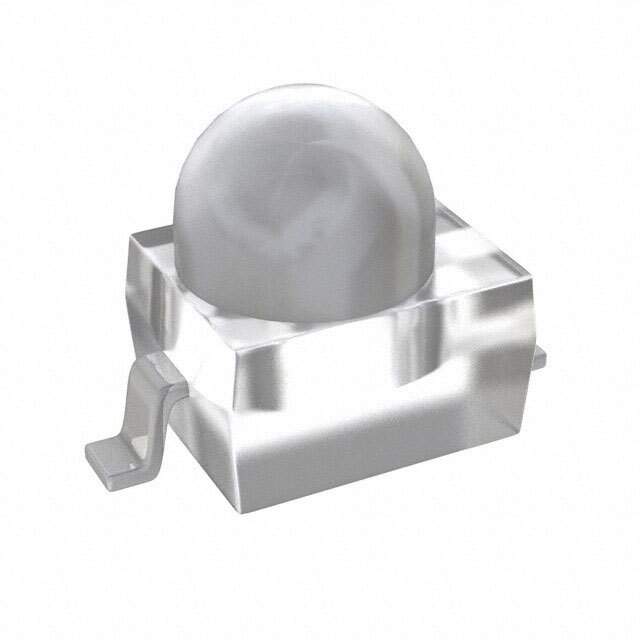

VLDR1235G Real Image
Same model may have multiple batches, images only for reference.

VLDR1235G

Part No VLDR1235G
Manufacturer Vishay
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD / Red 624nm LED Indication - Discrete 2.2V 2-SMD, Gull Wing
Datasheet
VLDR1235G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Vishay Semiconductor Opto Division
Series VLD.1235
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 14500mcd
Lens Style Round with Domed Top
Lens Size 1.80mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 50mA
Viewing Angle 11°
Mounting SMD (SMT)
Wavelength - Dominant 624nm
Wavelength - Peak 632nm
Package / Case 2-SMD, Gull Wing
Supplier Device Package 2-SMD
Dimension 2.30mm L x 2.30mm W
Height (Max) 2.97mm
Base Product Number VLDR1235
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Other Names VLDR1235GTR,VLDR1235GCT,VLDR1235GDKR
Standard Package 6,000
Win Source Part Number 1089491-VLDR1235G
Ultra Librarian 3D Model Ultra Librarian VLDR1235G CAD Model

Description

The VLDR1235G is an LED indication component manufactured by Vishay Semiconductor Opto Division. VLDR1235G manufactured by Vishay Semiconductor Opto Division.

  • Color: Red
  • Viewing Angle: 11 degrees
  • Lens Transparency: Clear
  • Millicandela Rating: 14500mcd
  • Forward Voltage: 2.2V
  • Test Current: 50mA
  • Package: 2-SMD, Gull Wing
