Same model may have multiple batches, images only for reference.

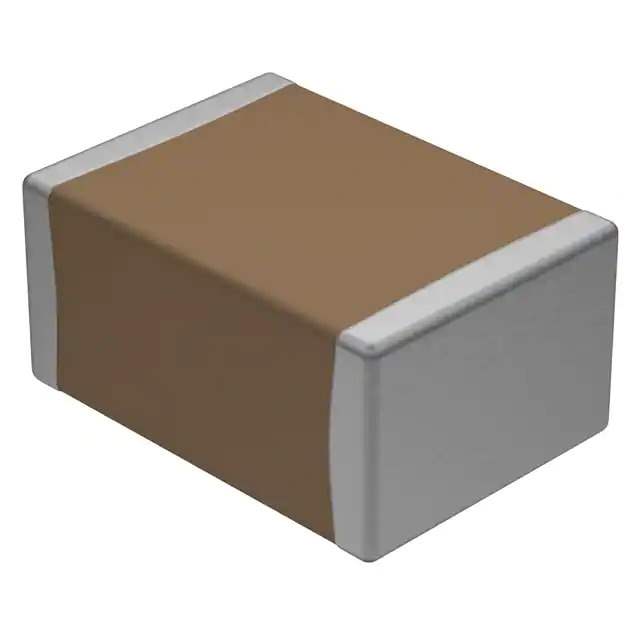

VJ1812Y684KXBAT Real Image
Same model may have multiple batches, images only for reference.

VJ1812Y684KXBAT

Part No VJ1812Y684KXBAT
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 0.68UF 100V X7R 1812
Datasheet
VJ1812Y684KXBAT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay
Series VJ
Package Tape & Reel
Product Status Active
Capacitance 0.68 µF
Tolerance ±10%
Voltage - Rated 100V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 150°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Max) 0.086" (2.18mm)
Base Product Number VJ1812
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 398166-VJ1812Y684KXBAT
Ultra Librarian 3D Model Ultra Librarian VJ1812Y684KXBAT CAD Model

Description

The 398166-VJ1812Y684KXBAT is a ceramic capacitor from Vishay.

  • Category: Capacitors
  • Series: VJ
  • Packaging: Tape & Reel
  • Standard Package Quantity: 1,000 pieces
  • Status: Active
  • Capacitance: 0.68 microfarads
  • Voltage Rating: 100V
  • Application: General-purpose
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Thickness: 0.086" (2.18mm)
  • Mounting Type: Surface Mount
