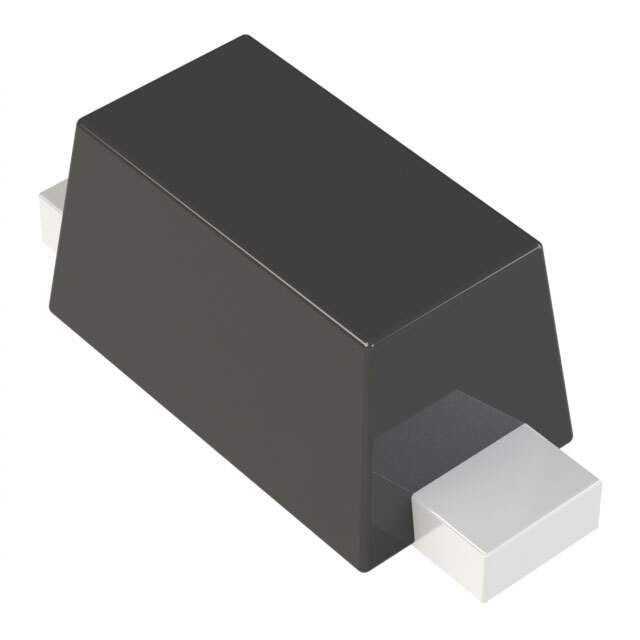

VESD05C1-02VHG3-08 Real Image
Same model may have multiple batches, images only for reference.

VESD05C1-02VHG3-08

Part No VESD05C1-02VHG3-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 11.5VC SOD523 / 11.5V Clamp 8.7A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Datasheet
VESD05C1-02VHG3-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6.85V
Voltage - Clamping (Max) @ Ipp 11.5V
Current - Peak Pulse (10/1000µs) 8.7A (8/20µs)
Power - Peak Pulse 100W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency 67pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
Base Product Number VESD05
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names VESD05C1-02VHG3-08GICT,VESD05C1-02VHG3-08GITR,VESD05C1-02VHG3-08GIDKR
Standard Package 8,000
Win Source Part Number 968685-VESD05C1-02VHG3-08
Ultra Librarian 3D Model Ultra Librarian VESD05C1-02VHG3-08 CAD Model

Description

The VESD05C1-02VHG3-08 is a Zener type TVS diode designed for automotive applications.

  • Product: VESD05C1-02VHG3-08
  • Type: Zener TVS Diode
  • Application: Automotive
  • Channel: Unidirectional
  • Voltage Reverse Standoff: 5V (Max)
  • Voltage Breakdown: 6.85V (Min)
  • Voltage Clamping: 11.5V @ Ipp
  • Power Peak Pulse: 100W
  • Capacitance: 67pF @ 1MHz
  • Current Peak Pulse: 8.7A (8/20µs)
  • Package/Case: SC-79, SOD-523
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Manufacturer: Vishay General Semiconductor - Diodes Division
