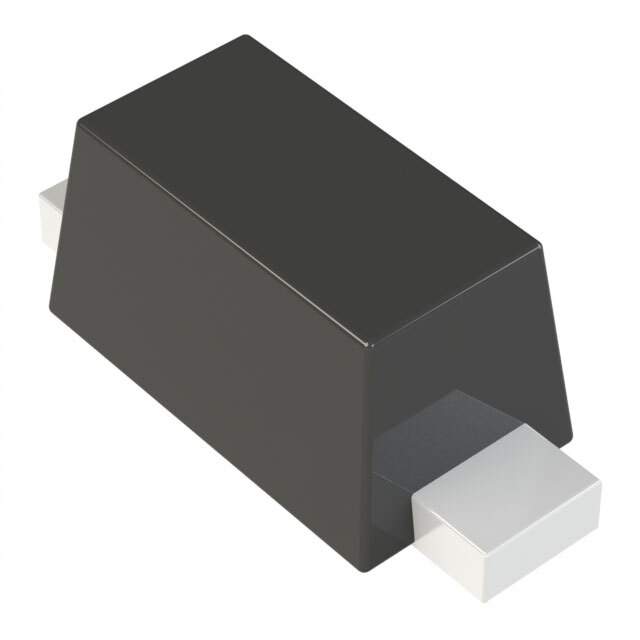

VESD03-02V-G-08

Part No VESD03-02V-G-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 3VWM 12VC SOD523
Datasheet
VESD03-02V-G-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 3V (Max)
Minimum Breakdown Voltage 4V
Max Clamping Voltage 12V (Typ)
Peak Pulse Current(Ippm) 9A (8/20μs)
Power Dissipation - Pd 108W
Applications General Purpose
Capacitance @ Frequency 110pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1116991-VESD03-02V-G-08
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian VESD03-02V-G-08 CAD Model

Description

The Vishay VESD03-02V-G-08 is a unidirectional zener diode with a stand-off voltage (Vwm) of 3V (Max) and a minimum breakdown voltage of 4V.

  • Manufacturer: Vishay
  • Type: Unidirectional Zener Diode
  • Stand-Off Voltage (Vwm): 3V (Max)
  • Minimum Breakdown Voltage: 4V
  • Peak Pulse Current (Ippm): 9A (8/20μs)
  • Power Dissipation - Pd: 108W
  • Capacitance @ Frequency: 110pF @ 1MHz
  • Application: General-purpose
  • Operating Temperature: -40°C to 125°C (TJ)
  • Package: SOD-523
  • Mounting: SMD (SMT)
  • Supply and Demand: Sufficient
  • Quantity per Package: 3k pcs
