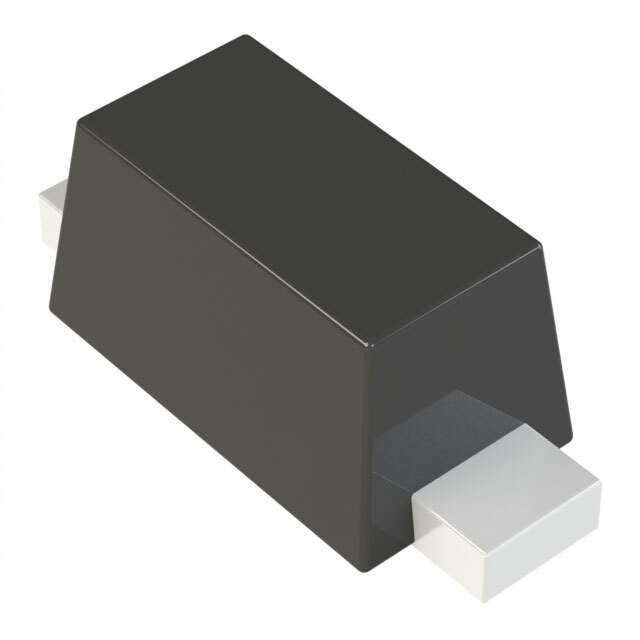

VESD01-02V-G-08 Real Image
Same model may have multiple batches, images only for reference.

VESD01-02V-G-08

Part No VESD01-02V-G-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 1VWM 9VC SOD523
Datasheet
VESD01-02V-G-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 1V (Max)
Minimum Breakdown Voltage 1.5V
Max Clamping Voltage 9V (Typ)
Peak Pulse Current(Ippm) 7A (8/20μs)
Power Dissipation - Pd 63W
Applications General Purpose
Capacitance @ Frequency 180pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1116990-VESD01-02V-G-08
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian VESD01-02V-G-08 CAD Model

Description

The Vishay VESD01-02V-G-08 is a unidirectional zener diode with a stand-off voltage of 1V and a minimum breakdown voltage of 1.5V.

  • Manufacturer: Vishay
  • Product Name: VESD01-02V-G-08
  • Type: Unidirectional Zener Diode
  • Stand-off Voltage: 1V
  • Minimum Breakdown Voltage: 1.5V
  • Package Type: SOD-523
  • Mounting Type: Surface Mount
  • Capacitance: 180pF @ 1MHz
  • Peak Pulse Current: 7A @ 8/20μs
  • Power Dissipation: 63W
  • Operating Temperature Range: -40°C to 125°C
  • Applications: General-purpose voltage clamping, transient voltage suppression, and ESD protection
