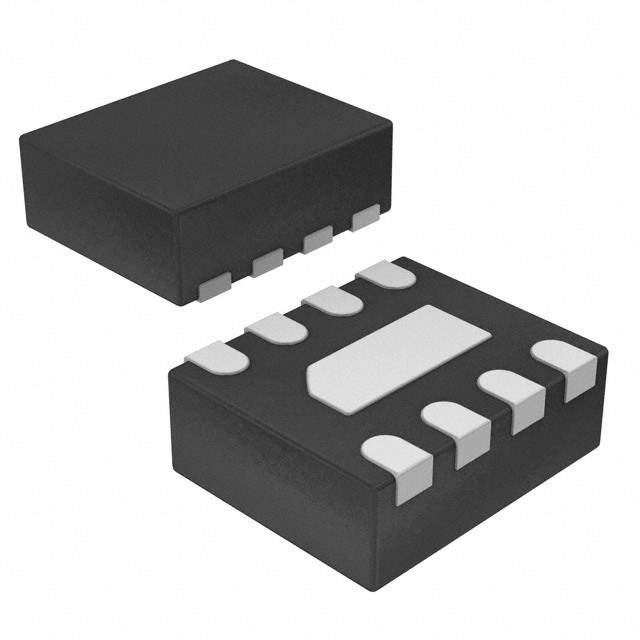

The VEMI45AA-HNH-GS08 is a bidirectional symmetrical (BiSy) single-line ESD protection device manufactured by Vishay. It's designed to protect sensitive electronic components from electrostatic discharge (ESD) strikes and other transient voltage events. This device is commonly used in portable devices and other applications where ESD protection is critical.

Applications:

• Mobile phones
• Smartphones
• Tablets
• Wearable devices (smartwatches, fitness trackers)
• Portable media players
• USB ports
• HDMI ports
• Other I/O interfaces

Features:

• Bidirectional and symmetrical ESD protection: Provides equal protection against both positive and negative ESD strikes.
• Low clamping voltage: Limits the voltage across the protected component during an ESD event, minimizing stress.
• Low capacitance: Minimizes signal distortion in high-speed data lines.
• Small form factor: Available in a small surface-mount package for space-constrained applications.
• Compliant with IEC 61000-4-2 standard: Meets industry standards for ESD immunity.
• Lead-free and RoHS compliant: Environmentally friendly.

Benefits:

• Enhanced ESD protection: Prevents damage to sensitive electronic components from ESD events.
• Improved system reliability: Increases the overall reliability of the electronic device.
• Reduced component failure rate: Low clamping voltage protects downstream components from overvoltage stress.
• Minimal signal degradation: Low capacitance ensures signal integrity in high-speed data applications.
• Easy to implement: Simple to integrate into existing circuit designs.

Additional Details:

The VEMI45AA-HNH-GS08 typically has a standoff voltage of around 5V. It utilizes a transient voltage suppression (TVS) diode to clamp the voltage during an ESD event. The low capacitance is crucial for preserving signal integrity in high-speed data interfaces like USB and HDMI. The small form factor makes it ideal for use in compact portable devices where space is limited. The GS08 indicates specific packaging information.
