Same model may have multiple batches, images only for reference.

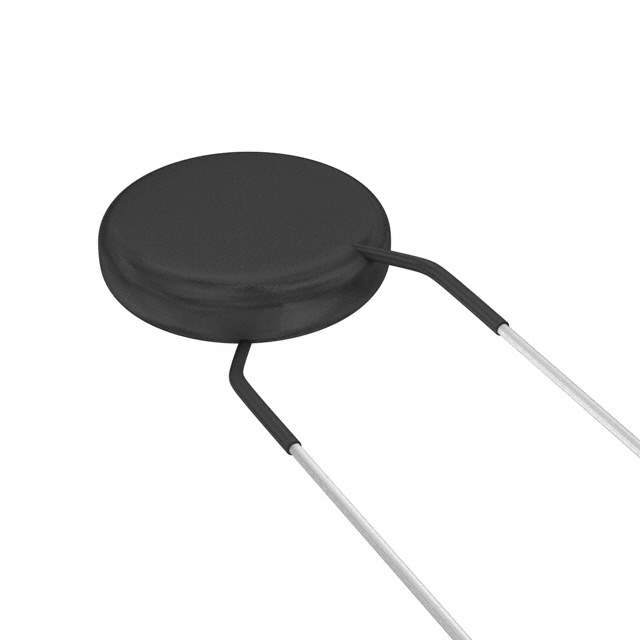

VDRS14T510BSE Real Image
Same model may have multiple batches, images only for reference.

VDRS14T510BSE

Part No VDRS14T510BSE
Manufacturer Vishay
Catalog TVS - Varistors, MOVs
Description VARISTOR 820V 4.5KA DISC 16.5MM / Var MOV 510VAC/670VDC 4500A 820V Radial Bulk
Datasheet
VDRS14T510BSE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay BC Components
Series VDRS
Packaging Bulk
Varistor Voltage (Minimum) 738V
Varistor Voltage (Typ) 820V
Varistor Voltage (Maximum) 902V
Current - Surge 4.5kA
Energy 145J
Number of Circuits 1
Maximum AC Volts 510VAC
Maximum DC Volts 670VDC
Capacitance @ Frequency 220pF @ 1kHz
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Style Through Hole
Package Disc 16.5mm
Win Source Part Number 799040-VDRS14T510BSE
Popularity Medium
Supply and Demand Status Balance
Family Name VDRS E
Introduction Date December 06, 2005
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VDRS14T510BSE CAD Model

Description

The VDRS14T510BSE is a part of the VDRS series of varistors designed by Vishay BC Components.

  • Capacitance: 220pF @ 1kHz
  • Varistor Voltage: 820V
  • Maximum AC Voltage: 510VAC
  • Maximum DC Voltage: 670VDC
  • Energy: 145J
  • Current Surge: 4.5kA
  • Package / Case: disc 16.5mm
  • Circuits: 1
