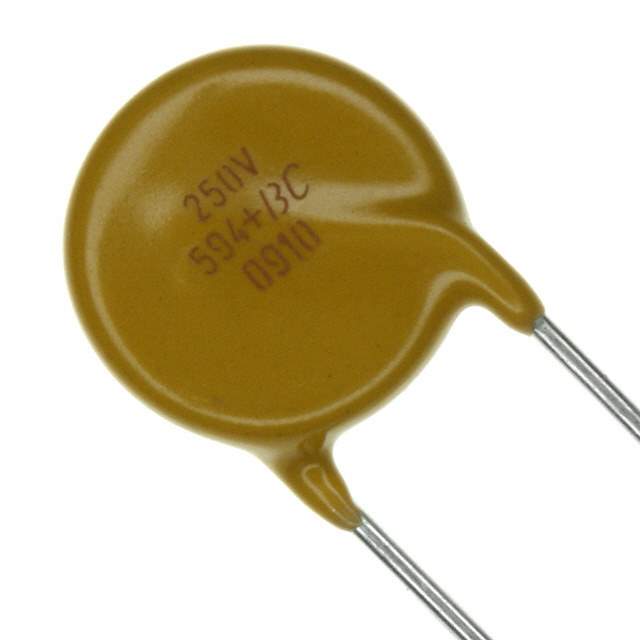

VDRS10P420BSE Real Image
Same model may have multiple batches, images only for reference.

VDRS10P420BSE

Part No VDRS10P420BSE
Manufacturer Vishay
Catalog TVS - Varistors, MOVs
Description VARISTOR 680V 2.5KA DISC 12.50MM
Datasheet
VDRS10P420BSE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Bulk
Status Active
Varistor Voltage (Min) 612V
Varistor Voltage (Typ) 680V
Varistor Voltage (Max) 748V
Current - Surge 2.5kA
Energy 73J
Number of Circuits 1
Maximum AC Volts 420VAC
Maximum DC Volts 560VDC
Capacitance @ Frequency 165pF @ 1kHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 12.50mm
Win Source Part Number 057277-VDRS10P420BSE
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VDRS10P420BSE CAD Model

Description

The VDRS10P420BSE is a varistor from Vishay.

  • GPTDescription: It has a capacitance of 165pF @ 1kHz and a varistor voltage range of 612V to 748V.
  • GPTDescription: The maximum AC volts are 420VAC, and the maximum DC volts are 560VDC.
  • GPTDescription: The energy rating is 73J, and the current-surge rating is 2.5kA.
  • GPTDescription: The package is bulk, and it is through-hole mountable.
  • GPTDescription: The dimensions of the varistor are disc 12.50mm.
  • GPTDescription: The operating temperature range is -40°C to 85°C (TA).
  • GPTDescription: The VDRS10P420BSE is a medium-popularity part with a balance of supply and demand status.
