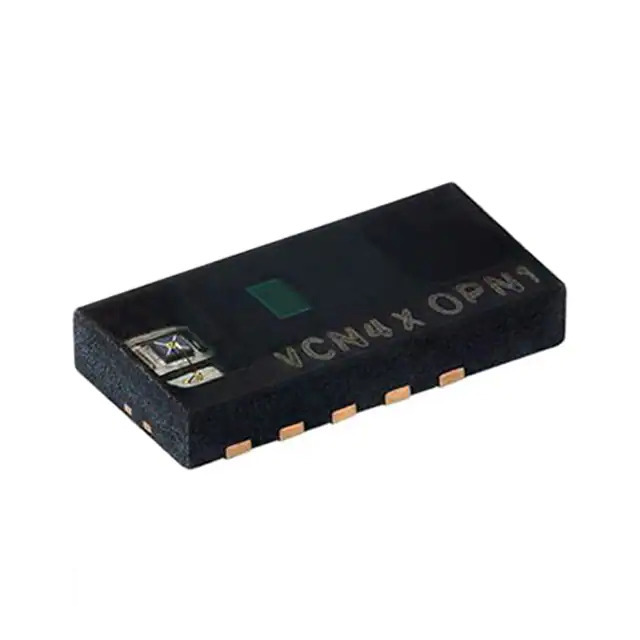

VCNL4020X01-GS08 Vishay
Same model may have multiple batches, images only for reference.

VCNL4020X01-GS08

Part No VCNL4020X01-GS08
Manufacturer Vishay
Catalog Optical Sensors - Ambient Light, IR, UV Sensors
Description SENSOR OPT 540NM AMBIENT 10VDFN
Datasheet
VCNL4020X01-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Ambient Light, IR, UV Sensors
Mfr Vishay Semiconductor Opto Division
Series -
Package Tape & Reel
Product Status Active
Type Ambient
Wavelength 540nm
Proximity Detection Yes
Output Type I²C
Voltage - Supply 2.5V ~ 3.6V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 10-VDFN
Supplier Device Package -
Base Product Number VCNL4020
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1375915-VCNL4020X01-GS08
Ultra Librarian 3D Model Ultra Librarian VCNL4020X01-GS08 CAD Model

Description

The VCNL4020X01-GS08 Ambient Light, IR, UV Sensor from Vishay Semiconductor Opto Division is a versatile sensor designed for ambient light, IR, and UV sensing applications.

  • Operating Temperature: -40°C to 105°C
  • Voltage Supply: 2.5V to 3.6V
  • Output Type: I²C
  • Wavelength: 540nm
  • Features: Proximity Detection
  • Package: 10-VDFN
  • Mounting: Surface Mount
