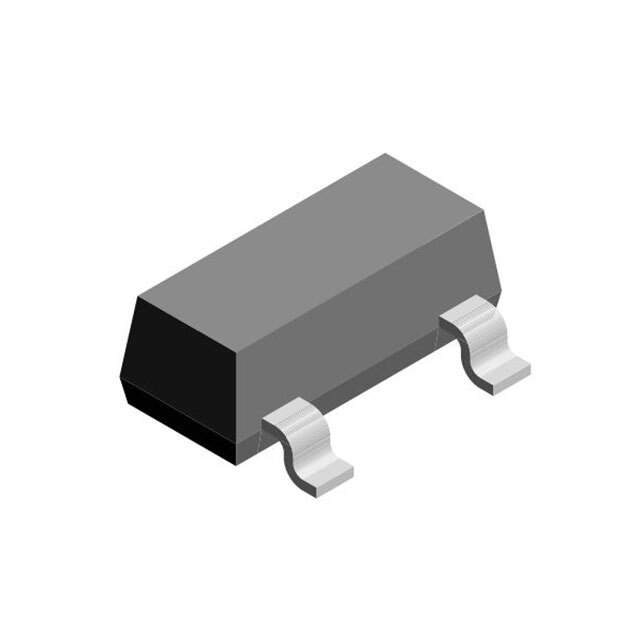

VCAN33A2-03GHE3-08 Real Image
Same model may have multiple batches, images only for reference.

VCAN33A2-03GHE3-08

Part No VCAN33A2-03GHE3-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 33VWM 56VC SOT323 / 56V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-323
Datasheet
VCAN33A2-03GHE3-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 33V (Max)
Voltage - Breakdown (Min) 36V
Voltage - Clamping (Max) @ Ipp 56V
Current - Peak Pulse (10/1000µs) 2.5A (8/20µs)
Power - Peak Pulse 140W
Power Line Protection No
Applications Automotive, CAN
Capacitance @ Frequency 8.4pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Base Product Number VCAN33
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1337847-VCAN33A2-03GHE3-08
Ultra Librarian 3D Model Ultra Librarian VCAN33A2-03GHE3-08 CAD Model

Description

The 1337847-VCAN33A2-03GHE3-08 is a bidirectional Zener type TVS diode designed for automotive and CAN applications.

  • Series: AEC-Q101
  • Polarization: Bidirectional
  • Type: Zener
  • Application: Automotive, CAN
  • Reverse Standoff Voltage: 33V (Max)
  • Breakdown Voltage: 36V
  • Clamping Voltage: 56V @ 140W Peak Pulse Power
  • Package: SC-70, SOT-323
  • Mounting Type: Surface Mount
  • Capacitance: 8.4pF @ 1MHz
  • Peak Pulse Current: 2.5A (8/20µs)
  • Operating Temperature: -55°C to 150°C (TJ)
  • REACH: Unaffected
  • ECCN: EAR99
  • Packaging: Tape and Reel
  • Standard Package: 3,000
