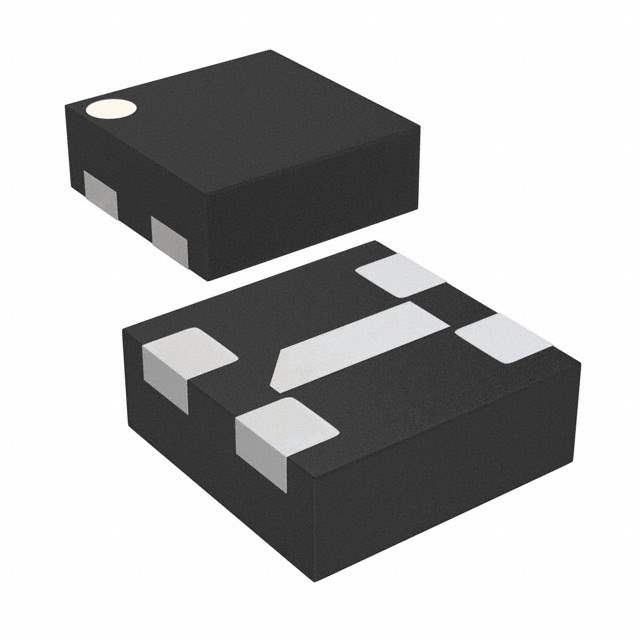

VBUS54DD-HS4-G4-08

Name: VBUS54DD-HS4-G4-08
Brand: Vishay
SKU: 850223
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VBUS54DD-HS4-G4-08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 5.5VWM 19VC LLP1010-5L / 19V Clamp 3A (8/20μs) Ipp Tvs Diode Surface Mount LLP1010-5L
Datasheet	VBUS54DD-HS4-G4-08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Vishay
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6.9V
Voltage - Clamping (Max) @ Ipp	19V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	57W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	5-XFDFN Exposed Pad
Supplier Device Package	LLP1010-5L
Base Product Number	VBUS54
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	850223-VBUS54DD-HS4-G4-08
Ultra Librarian 3D Model	Ultra Librarian VBUS54DD-HS4-G4-08 CAD Model

Description

The Vishay 850223-VBUS54DD-HS4-G4-08 is a zener diode from the VBUS54 series. 850223-VBUS54DD-HS4-G4-08 is manufactured by Vishay.

Series: VBUS54
Application: Transient Voltage Suppression
Reverse Standoff Voltage: 5.5V
Breakdown Voltage: 6.9V
Clamping Voltage: 19V @ peak pulse current (Ipp)
Peak Pulse Power: 57W
Channels: 4 Unidirectional
Peak Pulse Current: 3A (10/1000µs)
Package: 5-XFDFN Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -40°C to 125°C
