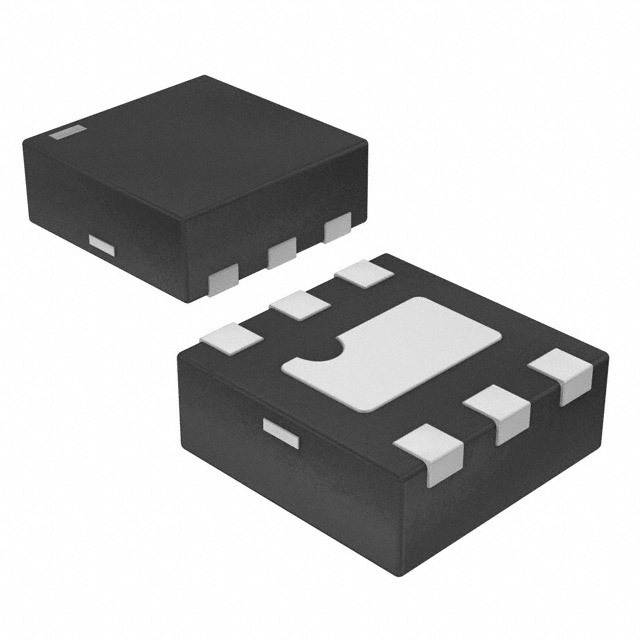

Same model may have multiple batches, images only for reference.
VBUS053AZ-HAF-GS08 Vishay
Same model may have multiple batches, images only for reference.

VBUS053AZ-HAF-GS08

Part No VBUS053AZ-HAF-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 18VC LLP75
Datasheet
VBUS053AZ-HAF-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 3
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 18V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 36W
Power Line Protection Yes
Applications USB OTG
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP75-7L
Win Source Part Number 036225-VBUS053AZ-HAF-GS08
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VBUS053AZ-HAF-GS08 CAD Model

Description

The Vishay VBUS053AZ-HAF-GS08 is a Steering (Rail to Rail) Circuit Protection used in USB OTG applications.

  • Channels: 3 Unidirectional Channels
  • Protection: Power Line Protection
  • STAND-OFF Voltage (Vwm): 5.5V (Max)
  • Minimum Breakdown Voltage: 6.5V
  • Max Clamping Voltage: 18V
  • Peak Pulse Current (Ippm): 3A (8/20μs)
  • Power Dissipation - Pd: 36W
  • Package: LLP75-7L
  • Popularity: Medium
  • Supply and Demand Status: Balanced
