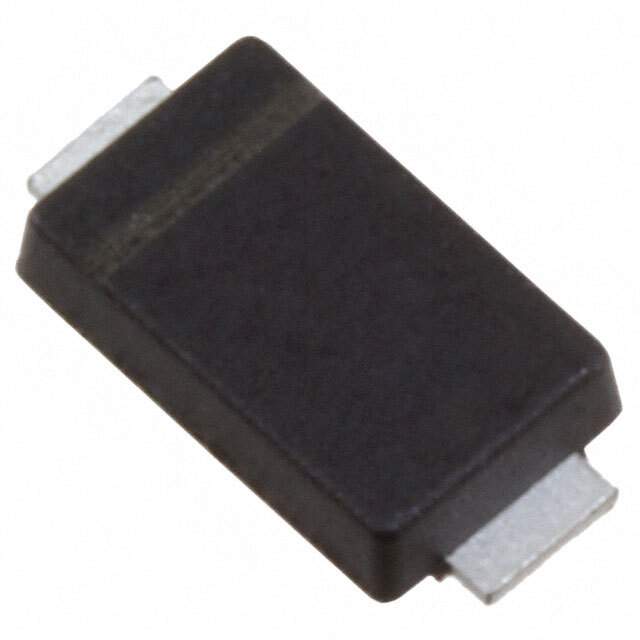

V4PAL45HM3_A/I Real Image
Same model may have multiple batches, images only for reference.

V4PAL45HM3_A/I

Part No V4PAL45HM3_A/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 3A DO221BC / Diode Schottky 45 V 3A Surface Mount DO-221BC (SMPA)
Datasheet
V4PAL45HM3_A/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 430 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 450 µA @ 45 V
Capacitance @ Vr, F 450pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package DO-221BC (SMPA)
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number V4PAL45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names V4PAL45HM3_A/IGITR,V4PAL45HM3_A/IGICT,V4PAL45HM3_A/IGIDKR
Standard Package 14,000
Win Source Part Number 1103643-V4PAL45HM3_A/I
Ultra Librarian 3D Model Ultra Librarian V4PAL45HM3_A/I CAD Model

Description

The V4PAL45HM3_A/I is a Schottky diode from Vishay General Semiconductor - Diodes Division.

  • Type: Fast recovery diode
  • Maximum Reverse Voltage: 45 V
  • Average Rectified Current: 3 A
  • Forward Voltage Drop: 430 mV @ 2 A
  • Reverse Leakage Current: 450 µA @ 45 V
  • Package: DO-221BC (SMPA) with exposed pad
  • Application: Automotive
