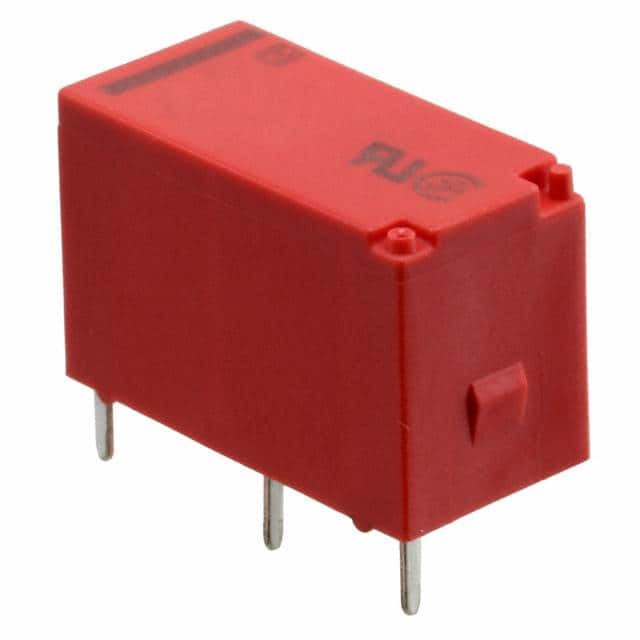

AQC1AD1-12VDC
Same model may have multiple batches, images only for reference.

AQC1AD1-12VDC

Part No AQC1AD1-12VDC
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1A 3-60V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series AQ-C
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 9.6 ~ 14.4VDC
Voltage - Load 3 V ~ 60 V
Load Current 1 A
Termination Style PC Pin
Package / Case Module
Base Product Number AQC1AD1
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 861700-AQC1AD1-12VDC
Ultra Librarian 3D Model Ultra Librarian AQC1AD1-12VDC CAD Model

Description

The Panasonic 861700-AQC1AD1-12VDC is a solid state relay from the AQ-C series.

  • Termination Style: PC pin
  • Package: Bulk
  • Standard Package Quantity: 50 pcs
  • Input Voltage Range: 9.6 ~ 14.4VDC
  • Output Type: DC
  • Circuit Configuration: SPST-NO
  • Load Current: 1 A
  • Load Voltage Range: 3 V to 60 V
  • Mounting: Through-hole
  • Package/Case: Module
  • Status: Obsolete
  • ECCN: EAR99.41.0020
