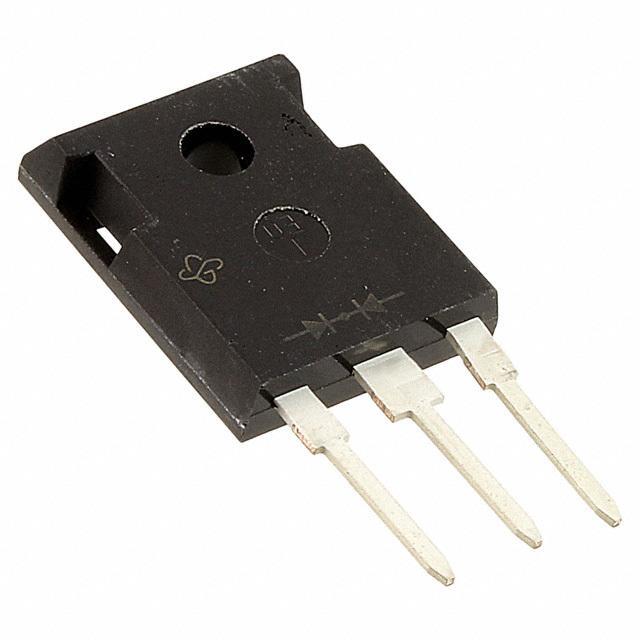

V40100PGW-M3/4W Vishay
Same model may have multiple batches, images only for reference.

V40100PGW-M3/4W

Part No V40100PGW-M3/4W
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description Diode Schottky 100V 40A 3-Pin(3+Tab) TO-3PW Tube / DIODE ARRAY SCHOTTKY 100V TO3PW
Datasheet
V40100PGW-M3/4W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 850mV @ 20A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 100V
Operating Temperature - Junction -40°C to 150°C
Mounting Through Hole
Case / Package TO-3PW
Win Source Part Number 036209-V40100PGW-M3/4W
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 750
Family Name V40100PGW
Introduction Date April 28, 2010
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian V40100PGW-M3/4W CAD Model

Description

The Vishay V40100PGW-M3/4W is a fast recovery Schottky diode with a maximum reverse voltage of 100V and a forward current of 20A.

  • Operating Temperature: -40°C to 150°C
  • Diode Configuration: 1 pair common cathode
  • Package: TO-3PW
  • Popularity: High
  • Demand: High
  • Supply and Demand Status: Limited
  • Quantity per Package: 750
  • Alternatives: MBR40100WT, MBR40100PT, MBR40100PTC 00TUC, and FST40100
