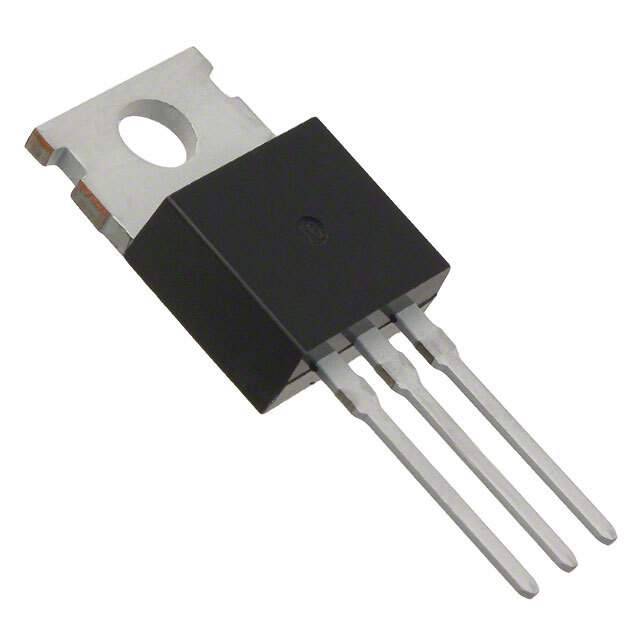

Same model may have multiple batches, images only for reference.
UGF15JT-E3/45 Real Image
Same model may have multiple batches, images only for reference.

UGF15JT-E3/45

Part No UGF15JT-E3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 15A ITO220AC
Datasheet
UGF15JT-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.75V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 30μA @ 600V
Mounting Through Hole
Case / Package ITO-220AC
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 130200-UGF15JT-E3/45
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UGF15JT-E3/45 CAD Model

Description

The UGF15JT-E3/45 from Vishay is a standard diode with a voltage - DC reverse (Vr) (Max) of 600V and an average rectified current (Io) of 15A.

  • Voltage - DC Reverse (Vr) (Max): 600V
  • Average Rectified Current (Io): 15A
  • Voltage - Forward (Vf) (Max) @ If: 1.75V @ 15A
  • Reverse Recovery Time (trr): 50ns
  • Current - Reverse Leakage @ Vr: 30μA @ 600V
  • Packaging: Tube/rail
  • Mounting: Through-hole
  • Capacitance @ Vr, F: -
  • Operating Temperature - Junction: -55°C to 150°C
  • Category: Discrete semiconductor products
  • Case/Package: ITO-220AC
  • Supply and Demand: Limited
