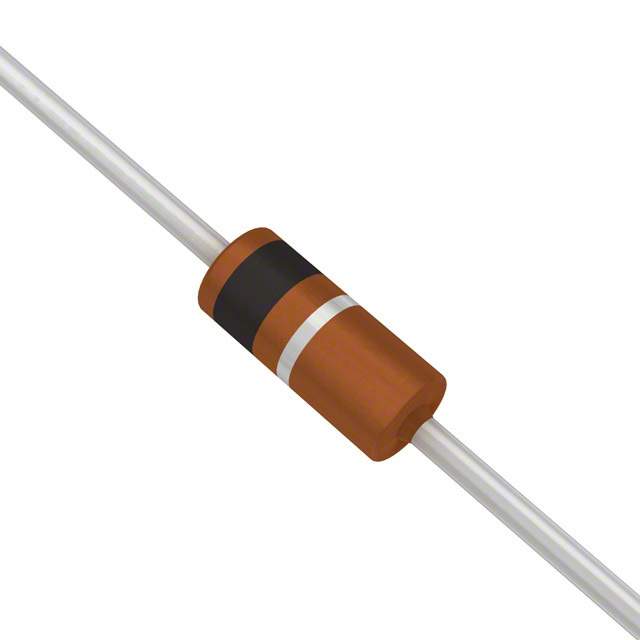

TZX22B-TAP

Name: TZX22B-TAP
Brand: Vishay
SKU: 957942
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TZX22B-TAP
Manufacturer	Vishay
Catalog	Diodes - Zener - Single
Description	DIODE ZENER 22V 500MW DO35 / Zener Diode 22 V 500 mW Through Hole DO-35 (DO-204AH)
Datasheet	TZX22B-TAP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Zener - Single
Mfr	Vishay General Semiconductor - Diodes Division
Series	Automotive, AEC-Q101, TZX
Package	Tape & Box (TB)
Voltage - Zener (Nom) (Vz)	22 V
Power - Max	500 mW
Impedance (Max) (Zzt)	65 Ohms
Current - Reverse Leakage @ Vr	1 µA @ 17 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA
Temperature Range - Operating	-65°C ~ 175°C
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35 (DO-204AH)
Base Product Number	TZX22
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0050
Standard Package	30,000
Win Source Part Number	957942-TZX22B-TAP
Ultra Librarian 3D Model	Ultra Librarian TZX22B-TAP CAD Model

Alternative Products

Description

The TZX22B-TAP is a zener diode from the TZX series of Vishay General Semiconductor - Diodes Division.

Automotive Grade: AEC-Q101 Compliant
Voltage Rating: 22V
Maximum Power Rating: 500mW
Voltage - Forward (Vf): 1.5V @ 200mA
Current - Reverse Leakage (Ir): 1µA @ 17V
Impedance (Zzt): 65 Ohms
Mounting Type: Through Hole
Package/Case: DO-204AH, DO-35, Axial
Supplier Device Package: DO-35 (DO-204AH)
