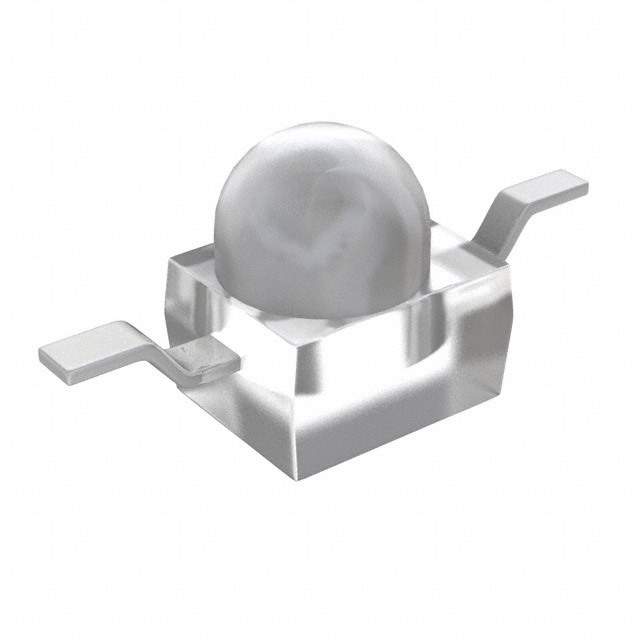

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 2.5mW/sr @ 20mA
Wavelength 890nm
Forward Voltage 1.3V
Viewing Angle 34°
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Dimension 2-SMD, Z-Bend
Win Source Part Number 144756-TSMF1000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSMF1000 CAD Model

Description

The TSMF1000 is an infrared (IR) emitting diode manufactured by Vishay.

  • Viewing Angle: 34 degrees
  • Wavelength: 890nm
  • Radiant Intensity: 2.5mW/sr @ 20mA
  • Forward Voltage: 1.3V
  • Continuous Forward Current: 100mA
  • Operating Temperature Range: -40°C to 85°C
  • Orientation: top-view oriented
  • Dimension: 2-SMD, Z-Bend
