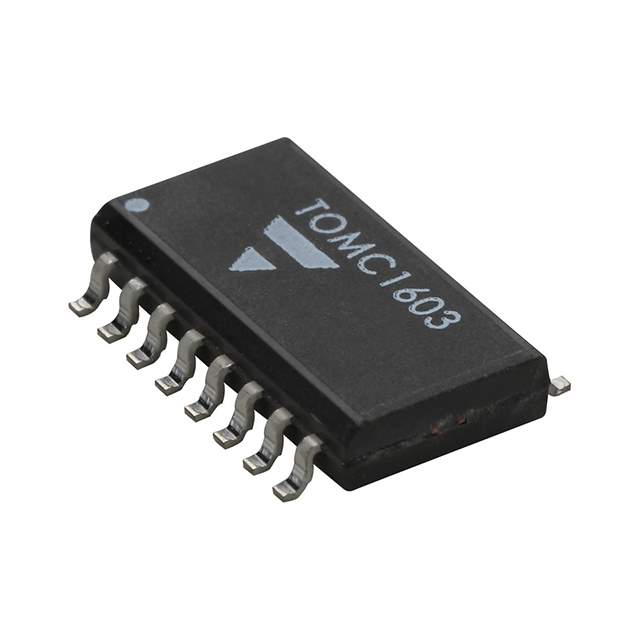

TOMCT16031001BT1 Real Image
Same model may have multiple batches, images only for reference.

TOMCT16031001BT1

Part No TOMCT16031001BT1
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description THIN FILM RES ARRAY 16 PIN ISOLA / 1k Ohm ±0.1% 750mW Power Per Element Isolated 8 Resistor Network/Array ±25ppm/°C 16-SOIC (0.220", 5.59mm Width)
Datasheet
TOMCT16031001BT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Vishay Dale Thin Film
Series TOMC
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±0.1%
Number of Resistors 8
Resistor Matching Ratio ±0.1%
Resistor-Ratio-Drift ±5ppm/°C
Number of Pins 16
Power Per Element 750mW
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.220", 5.59mm Width)
Dimension 0.440" L x 0.220" W (11.18mm x 5.59mm)
Height - Seated (Max) 0.085" (2.16mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0020
Other Names 764-TOMCT16031001BT1DKR,764-TOMCT16031001BT1TR,764-TOMCT16031001BT1CT
Standard Package 1,000
Win Source Part Number 990292-TOMCT16031001BT1
Ultra Librarian 3D Model Ultra Librarian TOMCT16031001BT1 CAD Model

Description

The Vishay Dale Thin Film TOMCT16031001BT1 is a resistor network array that has a resistance of 1k ohms and a tolerance of ±0.1%. This resistor has a temperature coefficient of ±25ppm/°C and a power per element of 750mW. It is isolated and has 8 resistors and 16 pins. The package is 16-SOIC and is mounted using SMD (SMT) technology. The resistor network array is suitable for use in applications where precision is required.
