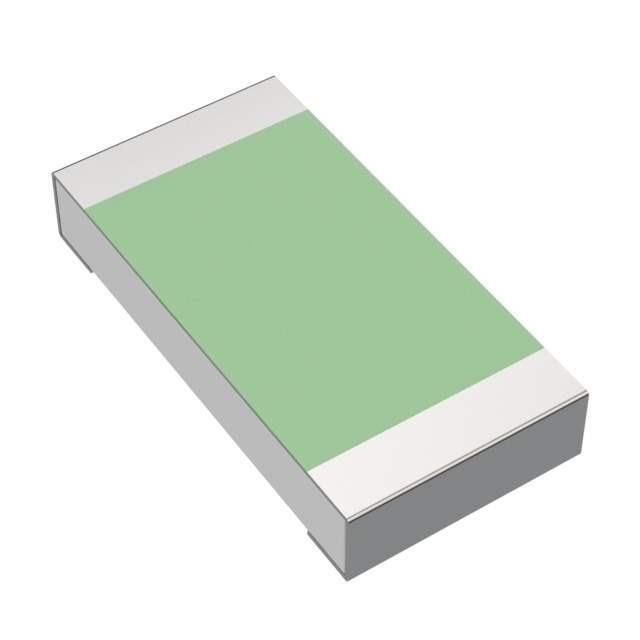

TNPW08055K11BHEA Vishay Dale
Same model may have multiple batches, images only for reference.

TNPW08055K11BHEA

Part No TNPW08055K11BHEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 5.11K OHM 0.1% 0.26W 0805
Datasheet
TNPW08055K11BHEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1211619-TNPW08055K11BHEA
Manufacturer Vishay Dale
Category Resistors- Chip Resistor - Surface Mount
Packaging  Tape & Reel (TR)
Part Status Active
Resistance (Ohms) 5.11 kOhms
Tolerance ±0.1%
Power (Watts) 0.26W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Package / Case 0805 (2012 Metric)
Ultra Librarian 3D Model Ultra Librarian TNPW08055K11BHEA CAD Model

Description

Vishay Automotive Grade TNPW e3 thin film flat chip resistors are the perfect choice for most fields of modern electronics where highest reliability and stability is of major concern. Typical applications include automotive, industrial, test and measuring equipment, and medical equipment.
