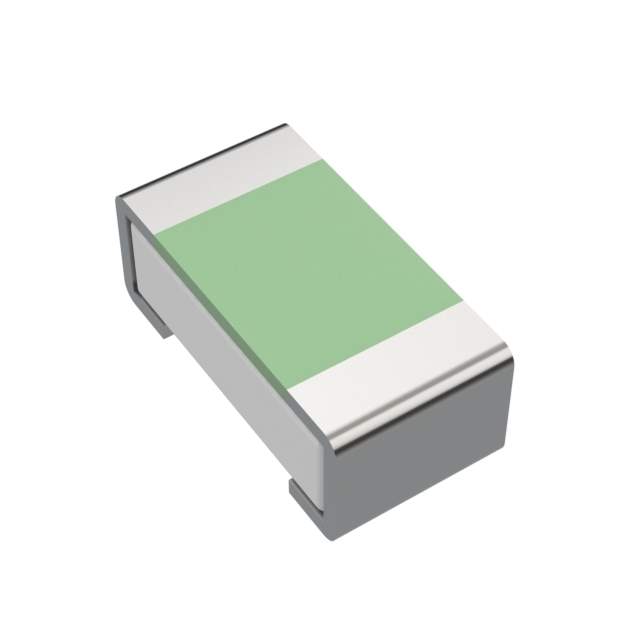

TNPW020120K0BEED Real Image
Same model may have multiple batches, images only for reference.

TNPW020120K0BEED

Part No TNPW020120K0BEED
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 20K OHM 0.1% 1/20W 0201 / 20 kOhms ±0.1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
TNPW020120K0BEED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series TNPW e3
Package Tape & Reel
Resistance 20 kOhms
Tolerance ±0.1%
Power (Watts) 0.05W, 1/20W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Ratings AEC-Q200
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
Base Product Number TNPW0201
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-TNPW020120K0BEEDCT,541-TNPW020120K0BEEDTR,541-TNPW020120K0BEEDDKR
Standard Package 10,000
Win Source Part Number 1201555-TNPW020120K0BEED
Ultra Librarian 3D Model Ultra Librarian TNPW020120K0BEED CAD Model

Description

The Vishay Dale TNPW020120K0BEED is a chip resistor used in surface mount technology.

  • Resistance: 20 kOhms
  • Tolerance: +/- 0.1%
  • Temperature Coefficient: +/- 25ppm/degree Celsius
  • AEC-Q200 Rating: Yes
  • Features: Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
  • Packaging: Tape and Reel
  • Height: 0.010 inches
  • Power Rating: 0.05W, 1/20W
  • Composition: Thin Film
  • Package/Case: 0201 (0603 metric)
  • Terminations: 2
  • Supplier Device Package: 0201
  • Operating Temperature Range: -55 to 155 degrees Celsius
  • MSL Level: 1 (unlimited)
  • HTSUS: 8533.21.0030
