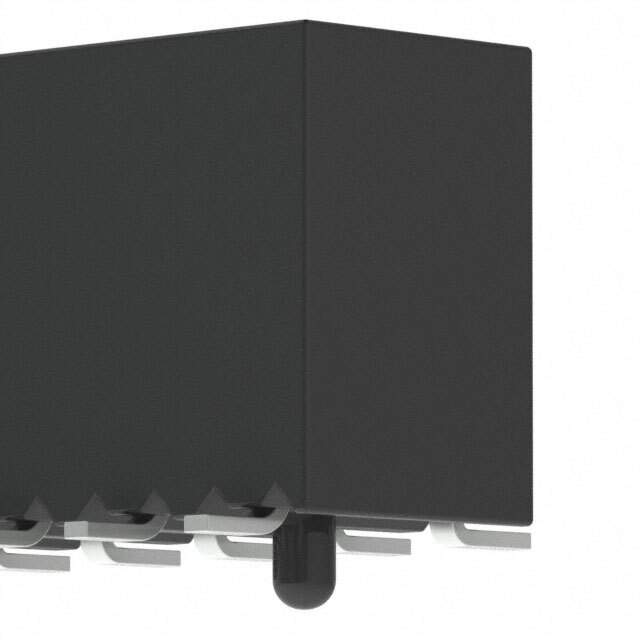

SSM-108-L-DV-A Real Image
Same model may have multiple batches, images only for reference.

SSM-108-L-DV-A

Part No SSM-108-L-DV-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-108-L-DV-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tube
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Features Board Guide
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-108
Standard Package 28
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291799-SSM-108-L-DV-A
Ultra Librarian 3D Model Ultra Librarian SSM-108-L-DV-A CAD Model

Description

The SSM series connector from Samtec Inc. is a 16-position receptacle with a female socket contact type.

  • Pitch-Mating: 0.100 inches
  • Application: Board-to-board or cable applications
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Color: Black
  • Contact Finish-Mating: Gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish-Post: Tin
  • Mounting Type: Surface mount, right-angle
  • Row Spacing-Mating: 0.100 inches
  • Insulation Height: 0.290 inches
  • Contact Shape: Square
  • Temperature Range: -55°C to 125°C
  • Voltage Rating: 405VAC and 572VDC
  • Packaging: Tube
  • Standard Package: 28
