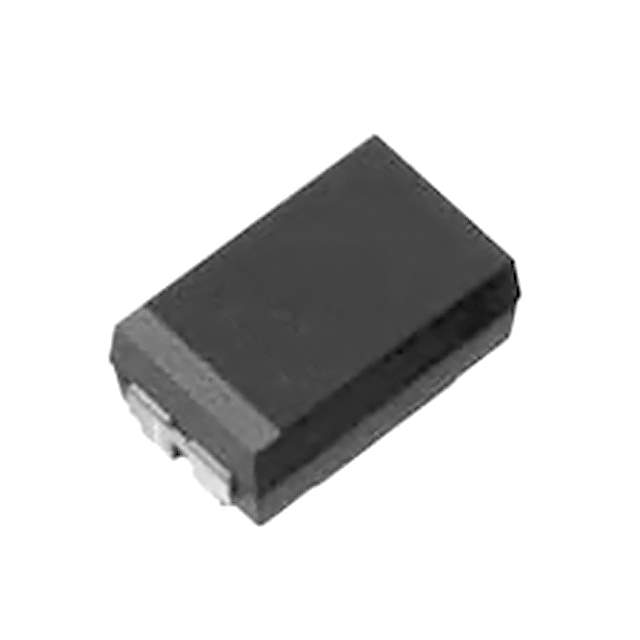

TMCSA1D684MTRF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 51 Weeks
Features 0.68 µF Molded Tantalum Capacitors 20 V 1206 (3216 Metric) 9.7Ohm @ 100kHz
Manufacturer Vishay
Series TMCS
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1206 (3216 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Part Number 718-2518-2, 718-2518-1, 718-2518-6
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937027-TMCSA1D684MTRF
Ultra Librarian 3D Model Ultra Librarian TMCSA1D684MTRF CAD Model

Description

The Vishay TMCSA1D684MTRF is a molded tantalum capacitor that is used in electronic circuits.

  • Package: 1206 (3216 Metric)
  • Mounting: Surface mount device (SMD)
  • Operating Temperature: -55°C to 125°C
  • Capacitance: 0.68μF
  • Voltage Rating: 20V
  • Supply and Demand Status: Balanced
