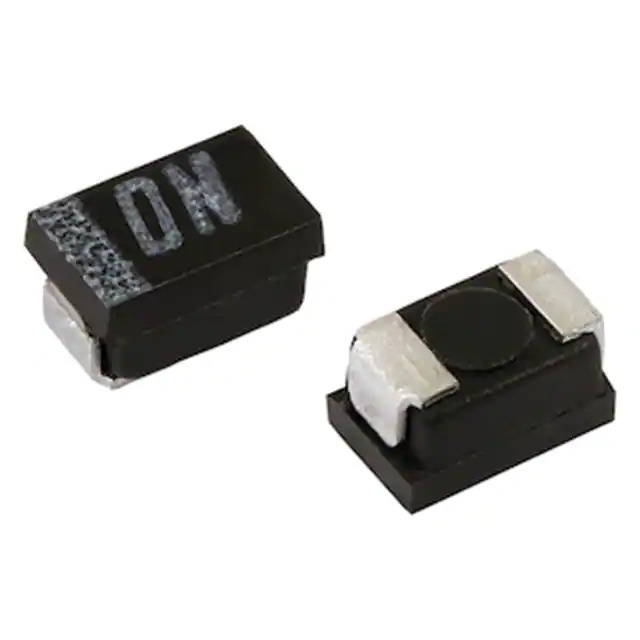

Same model may have multiple batches, images only for reference.

TMCP1D224MTRF

Name: TMCP1D224MTRF
Brand: Vishay
SKU: 1359652
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMCP1D224MTRF
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 0.22UF 20% 20V 0805 / 0.22 µF Molded Tantalum Capacitors 20 V 0805 (2012 Metric) 27.5Ohm @ 100kHz
Datasheet	TMCP1D224MTRF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Tantalum Capacitors
Mfr	Vishay Sprague
Series	TMCP
Package	Tape & Reel
Product Status	Active
Capacitance	0.22 µF
Tolerance	±20%
Voltage - Rated	20 V
Type	Molded
ESR (Equivalent Series Resistance)	27.5Ohm @ 100kHz
Temperature Range - Operating	-55°C ~ 125°C
Lifetime @ Temp.	-
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.047" (1.20mm)
Lead Spacing	-
Manufacturer Size Code	P
Ratings	-
Features	General Purpose
Failure Rate	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Win Source Part Number	1359652-TMCP1D224MTRF
Ultra Librarian 3D Model	Ultra Librarian TMCP1D224MTRF CAD Model

Description

The 1359652-TMCP1D224MTRF is a molded tantalum capacitor from Vishay Sprague.

Series: TMCP
Package: 0805 (2012 Metric)
Capacitance: 0.22µF
Rated Voltage: 20V
Tolerance: ±20%
ESR: 27.5Ohm @ 100kHz
Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height: 0.047" (1.20mm)
Mounting Type: Surface Mountable
Status: Active
REACH: Unaffected
ECCN: EAR99
Application: General Purpose
