Same model may have multiple batches, images only for reference.

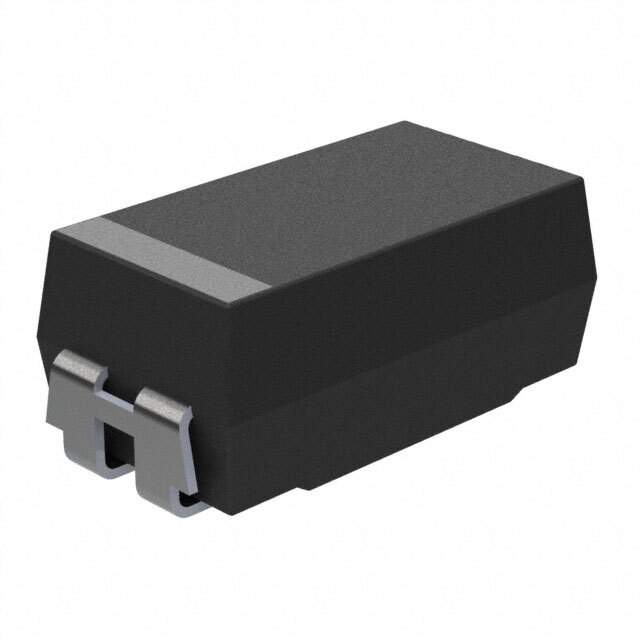

TMCMC1E226MTRF Real Image
Same model may have multiple batches, images only for reference.

TMCMC1E226MTRF

Part No TMCMC1E226MTRF
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20% 25V SMD / 22 µF Molded Tantalum Capacitors 25 V Nonstandard 1.1Ohm @ 100kHz
Datasheet
TMCMC1E226MTRF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TMCM
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
Type Molded
ESR (Equivalent Series Resistance) 1.1Ohm @ 100kHz
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.126" W (5.80mm x 3.20mm)
Height - Seated (Max) 0.106" (2.70mm)
Manufacturer Size Code C
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Names 718-2466-2,718-2466-1,718-2466-6
Standard Package 500
Win Source Part Number 1178533-TMCMC1E226MTRF
Ultra Librarian 3D Model Ultra Librarian TMCMC1E226MTRF CAD Model

Description

The Vishay Sprague 1178533-TMCMC1E226MTRF is a molded tantalum capacitor that is part of the TMCM series.

  • Series: TMCM
  • Component: SMD (SMT)
  • Capacitance: 22 µF
  • Voltage Rating: 25 V
  • Package: Nonstandard
  • Size Code: C
  • Packaging: Tape and Reel
  • Standard Package: 500
  • Tolerance: ±20%
  • ESR: 1.1Ohm @ 100kHz
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Vishay Sprague
