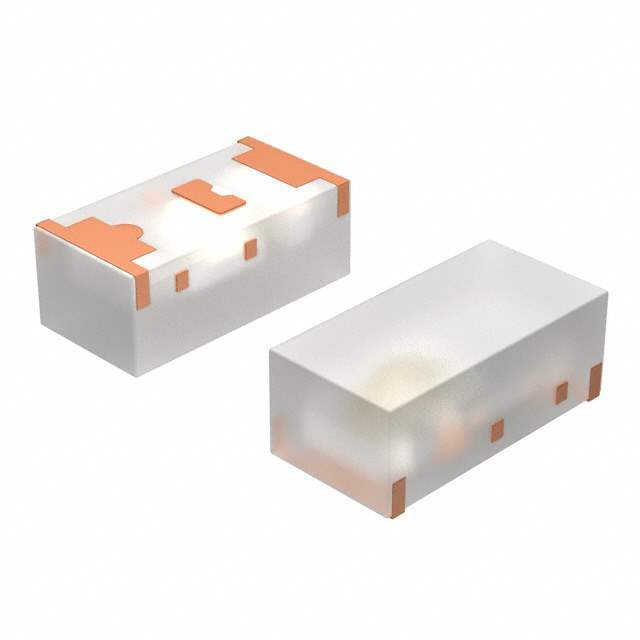

Same model may have multiple batches, images only for reference.

TLMG1100-GS15

Name: TLMG1100-GS15
Brand: Vishay
SKU: WS1325688
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLMG1100-GS15
Manufacturer	Vishay
Catalog	LED Indication - Discrete
Description	LED GREEN 0603 SMD
Datasheet	TLMG1100-GS15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - LED Indication - Discrete
Mfr	Vishay Semiconductor Opto Division
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Color	Green
Millicandela Rating	35mcd
Lens Style	Rectangle with Flat Top
Lens Size	1.60mm x 0.80mm
Voltage - Forward (Vf) (Typ)	2.1V
Current - Test	20mA
Ultra Librarian 3D Model	Ultra Librarian TLMG1100-GS15 CAD Model

Description

Smallest SMD package 0603 with exceptional brightness 1.6 mm x 0.8 mm x 0.6 mm (L x W x H)
High reliability lead frame based
Temperature range -40 °C to +100 °C
Footprint compatible to 0603 chipled
Wavelength 570 nm (green), 561 nm (pure green), 589 nm (yellow), 606 nm (orange), 633 nm (red)
AllnGaP and GaN technology
Viewing angle: extremely wide 160°
Grouping parameter: luminous intensity, wavelength
Available in 8 mm tape
Compatible to IR reflow soldering
Preconditioning according to JEDEC® level 2
AEC-Q101 qualified
