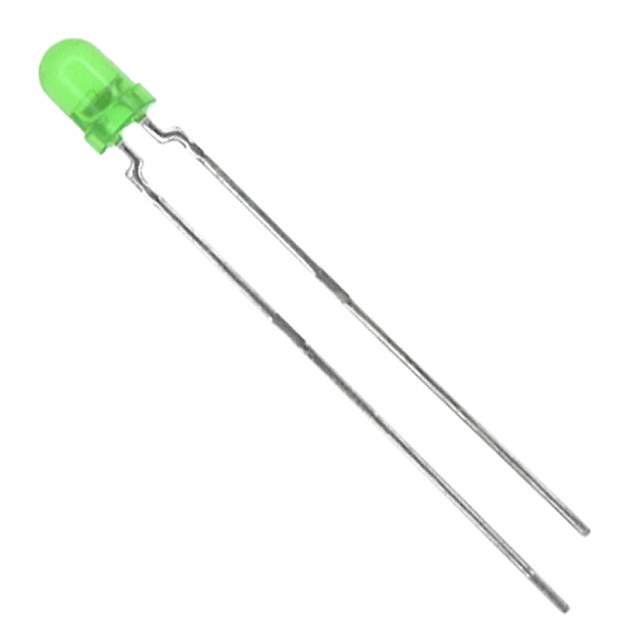

TLHP4200 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Color Green
Lens Transparency Clear
Millicandela Rating 7mcd
Lens Style/Size Round with Domed Top, 3mm (T-1), 3.20mm
Voltage - Forward (Vf) (Typ) 2.4V
Current - Test 10mA
Viewing Angle 44°
Mounting Style Through Hole
Wavelength - Dominant 560nm
Wavelength - Peak 555nm
Package Radial
Manufacturer Package 3mm
Height (Maximum) 6.10mm
Win Source Part Number 776167-TLHP4200
Popularity Medium
Supply and Demand Status Limited
Family Name TLHP4200
Introduction Date December 17, 2010
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TLHP4200 CAD Model

Description

The Vishay TLHP4200 is a radial package LED with a 3mm round with a domed top lens.

  • LED Type: Radial, 3mm Round with Domed Top Lens
  • Viewing Angle: 44°
  • Millicandela: 7mcd
  • Forward Voltage: 2.4V
  • Current Test: 10mA
  • Dominant Wavelength: 560nm
  • Peak Wavelength: 555nm
