Same model may have multiple batches, images only for reference.

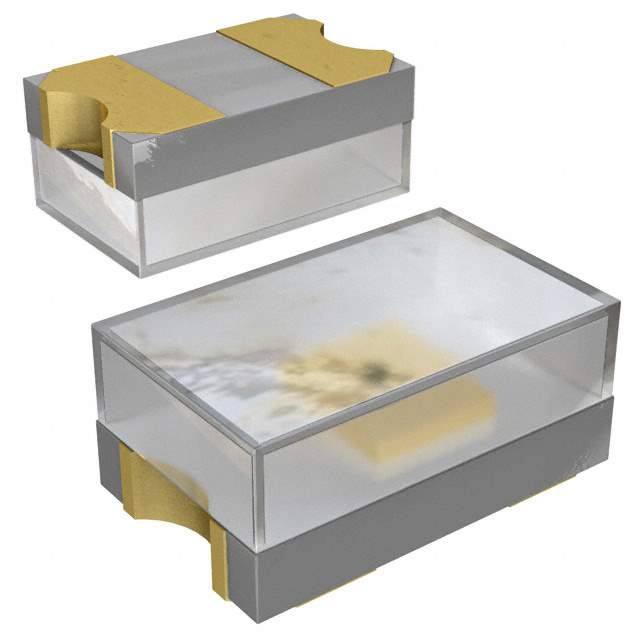

TEMT7000X01 Real Image
Same model may have multiple batches, images only for reference.

TEMT7000X01

Part No TEMT7000X01
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR 470 TO 1090 NM / Phototransistors 850nm Top View 0805 (2012 Metric)
Datasheet
TEMT7000X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Voltage - Collector Emitter Breakdown (Max) 20 V
Current - Collector (Ic) (Max) 20 mA
Current - Dark (Id) (Max) 100 µA
Wavelength 850nm
Viewing Angle 120°
Power - Max 100 mW
Mounting Surface Mount
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C
Case / Package 0805 (2012 Metric)
Base Product Number TEMT7000
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Part Number TEMT7000X01DKR,TEMT7000X01TR,TEMT7000X01CT,TEMT7000X01-ND
Standard Package 3,000
Win Source Part Number 1336652-TEMT7000X01
Ultra Librarian 3D Model Ultra Librarian TEMT7000X01 CAD Model

Description

The Vishay Semiconductor Opto Division TEMT7000X01 is a surface mount phototransistor that is designed for use in optical sensors.

  • Power Rating: 100 mW
  • Voltage Breakdown: 20 V
  • Maximum Collector Current: 20 mA
  • Viewing Angle: 120°
  • Wavelength: 850nm
  • Dark Current: 100 µA
  • Standard Package: 3,000
  • Case/Package Size: 0805 (2012 Metric)
  • Temperature Range: -40°C to 100°C
  • RoHS3 Compliant: Yes
