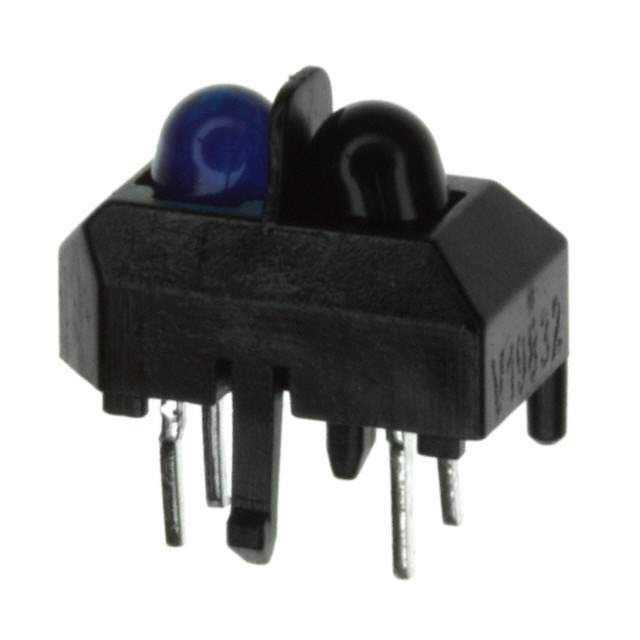

The TCRT5000 is a reflective optical sensor from Vishay Semiconductors. This sensor combines an infrared emitter and a phototransistor in a single package. When an object passes within the sensor's range, the infrared light emitted by the diode is reflected back to the phototransistor, causing it to conduct. This change in conductivity can be detected and used to trigger a variety of actions.

Applications:

• Line following robots: Detecting lines on a surface to guide the robot's movement.
• Object detection: Sensing the presence or absence of an object within a certain range.
• Position sensing: Determining the position of an object based on reflected light.
• Encoders: Used in rotary encoders to detect movement and direction.
• Tape readers: Reading data from tapes using reflective marks.

Features:

• Compact package: Small size allows for easy integration into various applications.
• Infrared emitter and phototransistor: Combines both components in a single package for simplified design.
• Operating range: Detects objects within a specific distance range.
• High sensitivity: Responds quickly to changes in reflected light.
• Operating temperature range: Suitable for use in a variety of environmental conditions.

Benefits:

• Easy to use: Simple to integrate into electronic circuits.
• Reliable detection: Provides consistent and accurate object detection.
• Versatile: Can be used in a wide range of applications.
• Cost-effective: Affordable solution for object detection and proximity sensing.
• Compact design: Space-saving design allows for use in small devices.

The TCRT5000 is a versatile and reliable optical sensor used for a variety of detection and sensing applications. The sensor consists of an infrared emitting diode and a phototransistor, each encapsulated within a leaded package. When an object is placed in front of the sensor, the infrared light emitted by the diode reflects off the object and is detected by the phototransistor. The output of the phototransistor changes in proportion to the amount of reflected light, providing a signal that can be used to determine the presence, proximity, or reflectivity of the object. The TCRT5000 is widely used in robotics, automation, and consumer electronics. Its robust design and high sensitivity make it suitable for both indoor and outdoor environments. The sensor's ability to detect objects without physical contact makes it ideal for applications where physical contact could damage the object or the sensor itself. By adjusting the current through the infrared emitting diode, the detection range of the sensor can be modified to suit the specific application requirements. The sensor is typically connected to a microcontroller or other processing unit to interpret the signal from the phototransistor and perform the desired action.
