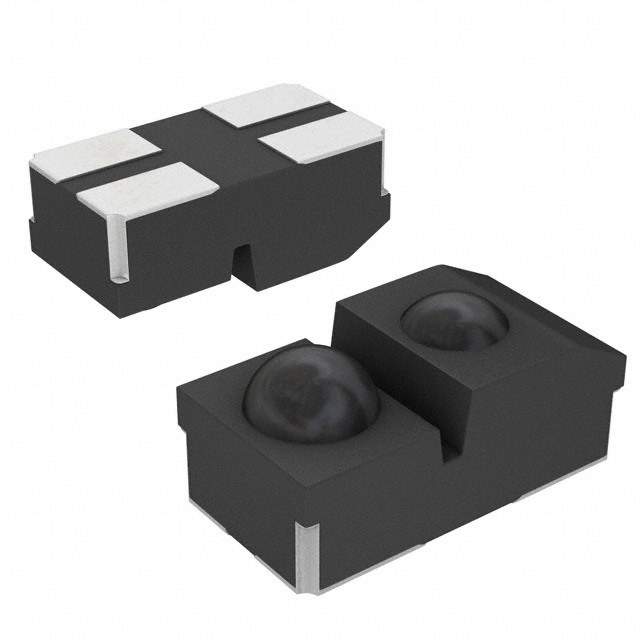

TCND3000 Real Image
Same model may have multiple batches, images only for reference.

TCND3000

Part No TCND3000
Manufacturer Vishay
Catalog Optical Sensors - Reflective - Analog Output
Description Reflective Sensor for Touchless Switch
Datasheet
TCND3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Series HALIOS
Packaging Reel - TR
Part Status Obsolete(EOL)
Sensing Distance 0.394" ~ 0.787" (10mm ~ 20mm) ADJ
Sensing Method Reflective
Current - DC Forward (If) (Maximum) 50mA
Output Type PIN Photodiode
Mounting SMD
Package 4-SMD, No Lead
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 1265644-TCND3000
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name TCND3000
Introduction Date November 02, 2004
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian TCND3000 CAD Model

Description

The TCND3000 is a reflective analog output sensor manufactured by Vishay Semiconductor Opto Division.

  • Series: HALIOS
  • Function: Designed for sensing reflective objects @ a distance of 10mm to 20mm.
  • Package: 4-SMD, no lead
  • Operating Temperature: -40°C to 85°C
  • Response Time: Not specified
  • Voltage Collector Emitter Breakdown: Not specified
  • Status: Obsolete and has limited supply and demand status.
  • Family Name: TCND3000
  • Introduction Date: November 02, 2004
  • Estimated EOL Date: Obsolete
  • ECCN: EAR99
  • Halogen Free Status: Unknown
