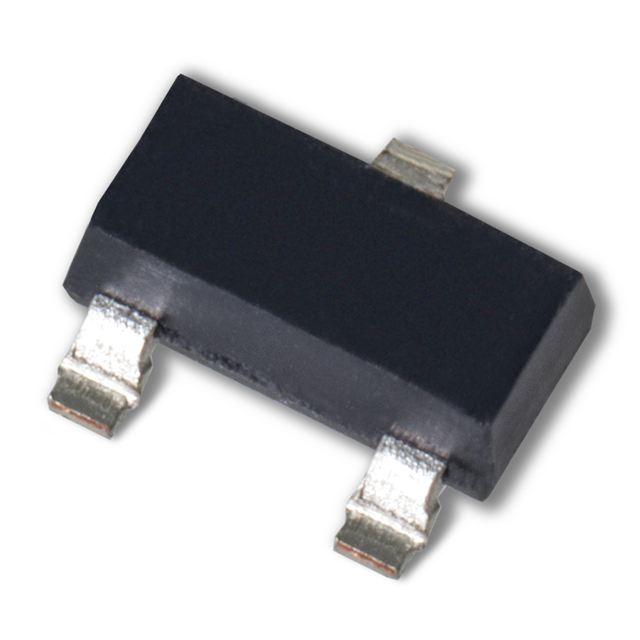

The SST308 is a JFET (Junction Field-Effect Transistor) manufactured by Vishay. It is primarily designed for low-noise amplifier applications and analog switching due to its specific characteristics.

Applications

• Audio Amplifiers: Used in preamplifiers and other audio circuits to amplify weak signals with minimal added noise.
• RF Amplifiers: Suitable for amplifying radio frequency signals in communication devices.
• Analog Switches: Can be used as an analog switch in various signal processing circuits.
• Mixers: Used in mixer circuits for frequency conversion.

Features

• Low Noise Figure: Provides excellent signal-to-noise ratio in amplifier applications.
• High Input Impedance: Minimizes loading effects on the signal source.
• High Gain: Offers significant signal amplification.
• Fast Switching Speed: Enables rapid switching between different analog signals.
• Through-Hole Packaging: Facilitates easy mounting on printed circuit boards.

Benefits

• Superior Audio Quality: Low noise figure ensures clean and clear audio amplification.
• Efficient Signal Amplification: High gain and input impedance result in efficient amplification with minimal signal loss.
• Versatile Switching Capability: Fast switching speed allows for dynamic signal routing in analog circuits.
• Simplified Circuit Integration: Through-hole packaging simplifies assembly and integration into existing designs.

Technical Specifications

The SST308 is an N-Channel JFET. Key parameters include:

• Polarity: N-Channel
• Configuration: Single
• Package Type: TO-92
• Mounting Style: Through Hole

The SST308's characteristics make it suitable for applications where low noise and high input impedance are critical. Designers should consult the datasheet for detailed electrical characteristics, such as gate-source breakdown voltage, drain current, and transconductance, to ensure optimal circuit performance.
