Same model may have multiple batches, images only for reference.

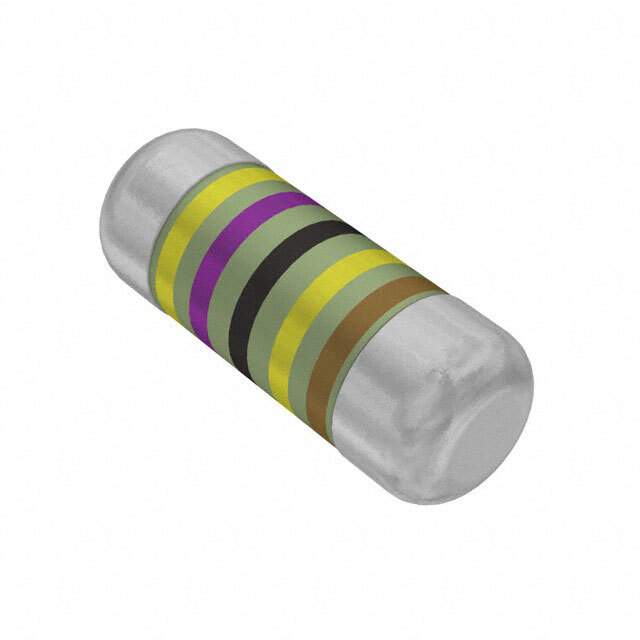

SMM02070C4709FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C4709FBP00

Part No SMM02070C4709FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 47 OHM 1% 1W MELF / 47 Ohms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02070C4709FBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0207
Package Tape & Reel
Resistance 47 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0207
Supplier Device Package MELF
Ratings AEC-Q200
Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names 749-1162-2,749-1162-1,749-1162-6,SMM02070C4709FBP00-ND
Standard Package 1,500
Win Source Part Number 979229-SMM02070C4709FBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070C4709FBP00 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components SMM0207 series is a thin film chip resistor that is anti-sulfur and automotive AEC-Q200 compliant.

  • Compliance: Anti-Sulfur and Automotive AEC-Q200
  • Features: Pulse Withstanding
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power: 1W
  • Resistance: 47 ohms
  • Package/Case: MELF, 0207
  • Supplier Device Package: MELF
  • Temperature Range: -55°C to 155°C
  • Dimension: 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
  • Standard Package Quantity: 1,500
