Same model may have multiple batches, images only for reference.

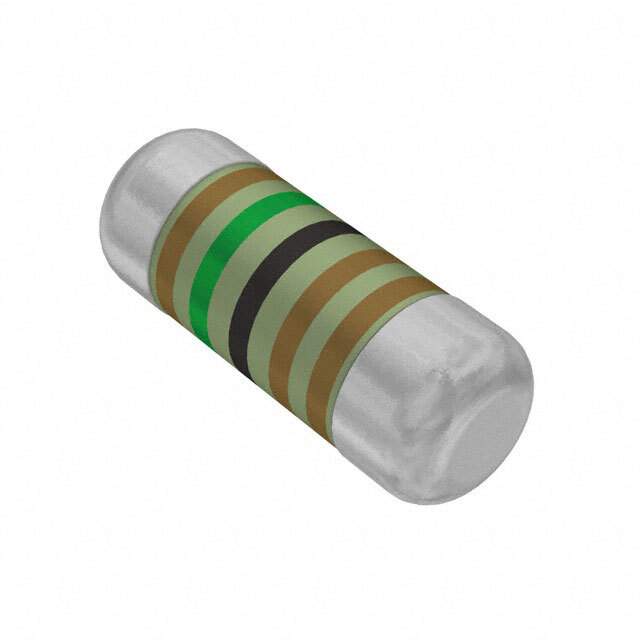

SMM02070C1501FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C1501FBP00

Part No SMM02070C1501FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 1.5K OHM 1% 1W MELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Beyschlag
Packaging Reel
Resistance 1.5 kOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package MELF, 0207
Supplier Device Package MELF
Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801594-SMM02070C1501FBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070C1501FBP00 CAD Model

Description

The SMM02070C1501FBP00 is a thin film resistor that is part of the resistor category, manufactured by Vishay Beyschlag.

  • Power: 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Resistance: 1.5kOhms
  • Mounting Type: Surface Mount
  • Package / Case: Reel
  • Dimension: 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
