Same model may have multiple batches, images only for reference.

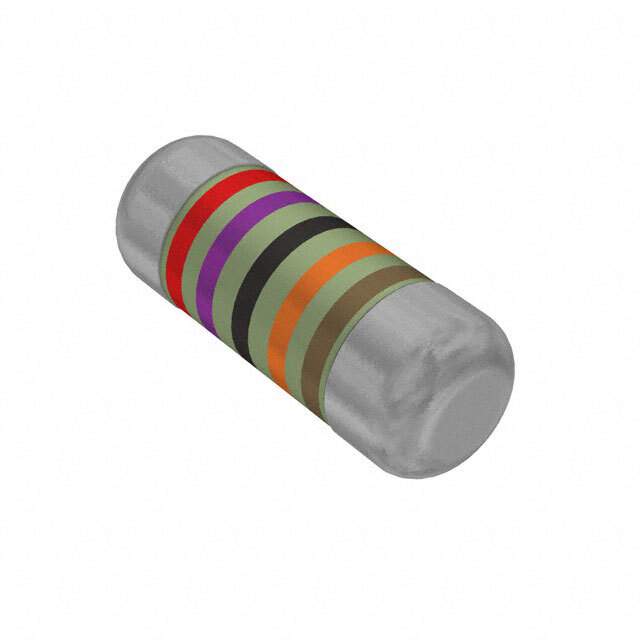

SMM02040C2703FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C2703FB300

Part No SMM02040C2703FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 270K OHM 1% 1/4W MELF 0204 / 270 kOhms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02040C2703FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Beyschlag/Draloric/BC Components
Packaging Reel - TR
Resistance 270 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Case / Package MELF, 0204
Supplier Device Package Mini MELF
Ratings AEC-Q200
Size / Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-1344-6,749-1344-2,749-1344-1
Standard Package 3,000
Win Source Part Number 1327141-SMM02040C2703FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C2703FB300 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 1327141-SMM02040C2703FB300 is a chip resistor - surface mount that belongs to the resistors category.

  • Standard Package: 3,000
  • Tolerance: ±1%
  • Anti-Sulfur: Yes
  • Automotive AEC-Q200: Yes
  • Pulse-Withstanding: Yes
  • Composition: Thin Film
  • Resistance: 270 kOhms
  • Temperature Coefficient: ±50ppm/°C
  • Size/Dimension: 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
  • Height-Seated (Max): -
  • Supplier Device Package: Mini MELF
  • Case/Package: MELF, 0204
  • ROHS3 Compliant: Yes
