Same model may have multiple batches, images only for reference.

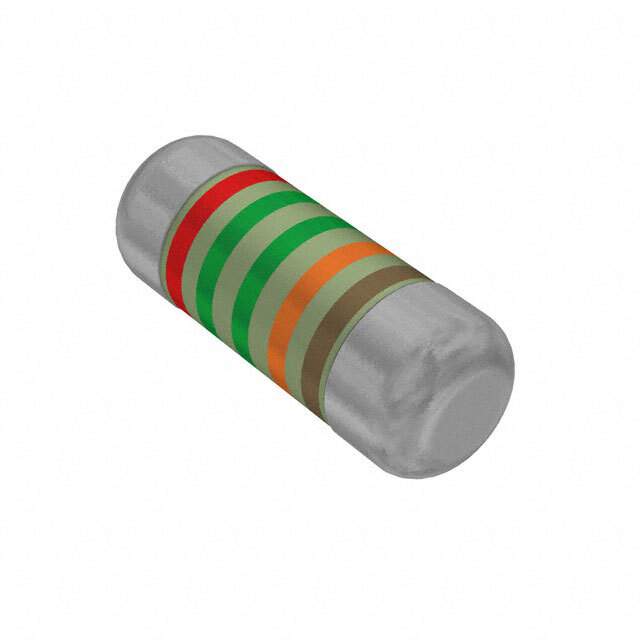

SMM02040C2553FB000 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C2553FB000

Part No SMM02040C2553FB000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 255K OHM 1% 1/4W MELF 0204
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Beyschlag
Packaging Tape and Reel
Resistance 255 kOhms
Tolerance ±1%
Power (W) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package MELF, 0204
Supplier Device Package Mini MELF
Parts Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Win Source Part Number 716297-SMM02040C2553FB000
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMM02040C2553FB000 CAD Model

Description

The SMM02040C2553FB000 is a thin film resistor that has a tolerance of ±1% and a temperature coefficient of ±50ppm/°C.

  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Resistance: 255 kOhms
  • Power Rating: 0.25W, 1/4W
  • Number of Terminations: 2
  • Package: Mini MELF
  • Features: Anti-sulfur, automotive AEC-Q200, and pulse-withstanding
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
  • Supplier: Vishay Beyschlag
