Same model may have multiple batches, images only for reference.

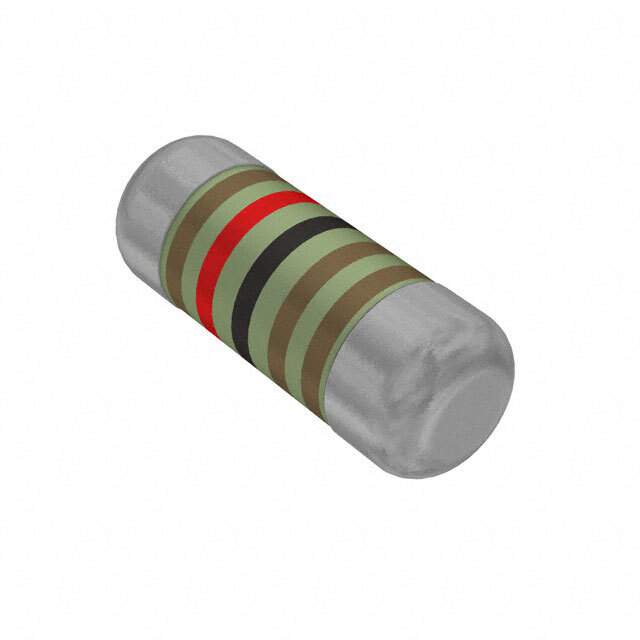

SMM02040C1201FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C1201FB300

Part No SMM02040C1201FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 1.2K OHM 1% 1/4W MELF 0204 / 1.2 kOhms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02040C1201FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0204
Package Tape & Reel
Resistance 1.2 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case MELF, 0204
Supplier Device Package Mini MELF
Ratings AEC-Q200
Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names 749-1251-1,749-1251-2,749-1251-6
Standard Package 3,000
Win Source Part Number 1110123-SMM02040C1201FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C1201FB300 CAD Model

Description

The SMM0204 series chip resistor is a high-performance device designed to meet the strict requirements of the automotive industry.

  • Power Rating: 0.25W
  • Composition: Thin Film
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Resistance: 1.2 kOhms
  • Package/Case: MELF 0204
  • Height: Not Seated (Max)
  • Package Type: Mini MELF
  • Temperature Range: -55°C to 125°C
  • AEC-Q200: Rated
  • Standard Package: 3,000
