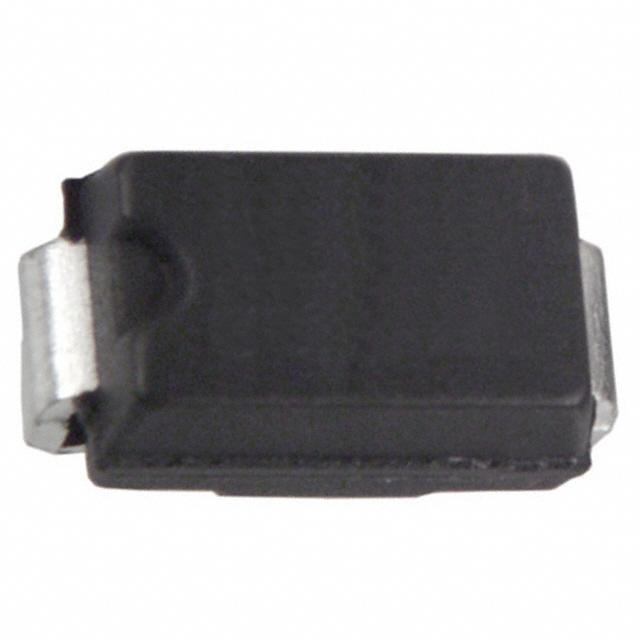

The SMAJ6.8A is a surface mount Transient Voltage Suppressor (TVS) diode manufactured by Vishay. It is designed to protect sensitive electronic components from voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). It is a unidirectional device.

Applications:

• I/O port protection
• Data line protection
• Power supply protection
• Protection of sensitive electronic equipment
• Automotive applications

Features:

• Surface Mount SMA package
• Glass passivated junction
• 400W peak pulse power capability at 10/1000 μs waveform
• Excellent clamping capability
• Low incremental surge resistance
• Fast response time
• Low leakage current
• Unidirectional TVS
• RoHS compliant

Benefits:

• Provides robust overvoltage protection, enhancing the reliability of electronic systems.
• Compact size allows for use in space-constrained applications.
• Reduces downtime and maintenance costs associated with transient voltage damage.
• Enhances system immunity to electrical noise and disturbances.
• Compliance with environmental regulations.

Additional Details:

The SMAJ6.8A features a standoff voltage of 6.8 V, and a breakdown voltage between 7.56 V and 8.36 V. The peak pulse power dissipation is 400 W at a 10/1000 μs waveform. The operating junction temperature range is -55 °C to +150 °C. The clamping voltage at peak pulse current is 12.3 V. The package is a DO-214AC (SMA). The device is unidirectional, meaning it provides protection against positive voltage transients. The fast response time is crucial for protecting sensitive components. The low incremental surge resistance ensures efficient clamping of transient voltages. By diverting excess voltage away from sensitive components, it prevents damage and ensures the continuous operation of the protected equipment.
