Same model may have multiple batches, images only for reference.

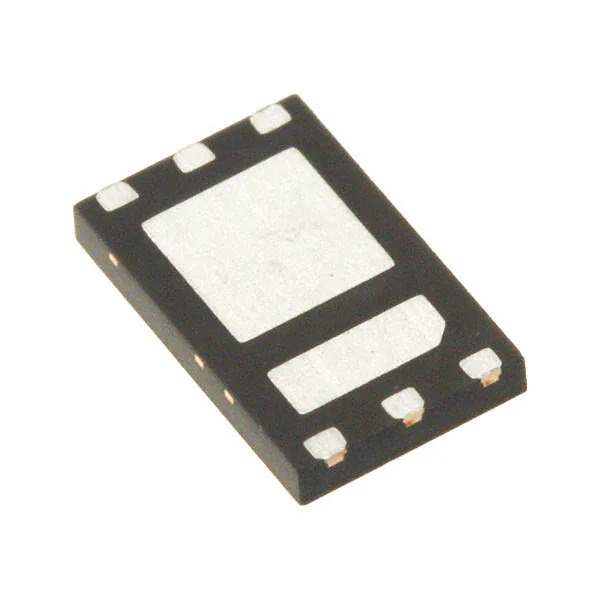

SIZ790DT-T1-GE3 Real Image
Same model may have multiple batches, images only for reference.

SIZ790DT-T1-GE3

Part No SIZ790DT-T1-GE3
Manufacturer Vishay
Catalog FETs - Arrays
Description MOSFET 2N-CH 30V 16A 6-POWERPAIR
Datasheet
SIZ790DT-T1-GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Vishay
Series SkyFET®, TrenchFET®
Package Tape & Reel
Product Status Obsolete
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 16A, 35A
Rds On (Max) @ Id, Vgs 9.3mOhm @ 15A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 830pF @ 15V
Power - Max 27W, 48W
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 6-PowerPair™
Supplier Device Package 6-PowerPair™
Base Product Number SIZ790
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 667357-SIZ790DT-T1-GE3
Ultra Librarian 3D Model Ultra Librarian SIZ790DT-T1-GE3 CAD Model

Description

The SIZ790DT-T1-GE3 is a logic level gate N-Channel MOSFET array from Vishay's SkyFET and TrenchFET series.

  • Drain to Source Voltage (Vdss): 30V
  • Continuous Drain Current (Id): 16A @ 25°C and 35A
  • Rds On (Max): 9.3mOhm @ 15A and 10V
  • Mounting: Surface Mountable
  • Package: 6-PowerPair
  • Temperature Range: -55°C to 150°C
  • Status: Obsolete
