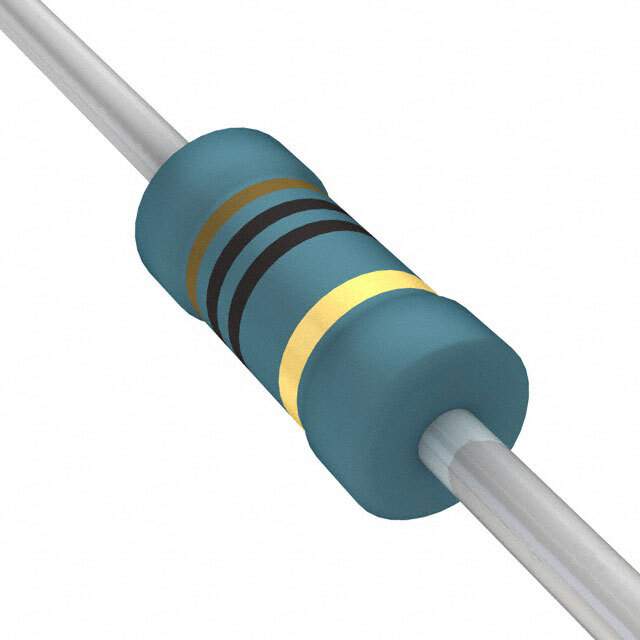

SFR16S0001009JA500 Real Image
Same model may have multiple batches, images only for reference.

SFR16S0001009JA500

Part No SFR16S0001009JA500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 10 OHM 1/2W 5% AXIAL / 10 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Metal Film
Datasheet
SFR16S0001009JA500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series SFR16S
Package Cut Tape (CT),Tape & Box (TB)
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Dimension 0.075" Dia x 0.138" L (1.90mm x 3.50mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names SFR16S0001009JA500-ND,BC4299CT,BC4299TB
Standard Package 5,000
Win Source Part Number 1034043-SFR16S0001009JA500
Ultra Librarian 3D Model Ultra Librarian SFR16S0001009JA500 CAD Model

Description

The Vishay SFR16S0001009JA500 is a through-hole resistor with a resistance of 10 Ohms and a power rating of 0.5W.

  • Resistance: 10 Ohms
  • Power Rating: 0.5W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Metal Film
  • Package/Case: Axial
  • Operating Temperature: -55°C to 155°C
  • Packaging: Cut Tape (CT), Tape & Box (TB)
  • Standard Package: 5,000
  • Category: Resistors>Through Hole Resistors
  • Status: Active
