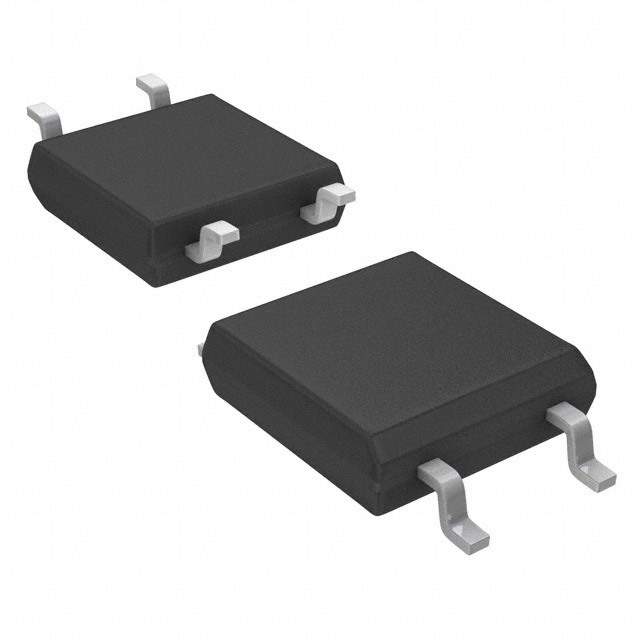

SFH690B-X001T Real Image
Same model may have multiple batches, images only for reference.

SFH690B-X001T

Part No SFH690B-X001T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4SOP
Datasheet
SFH690B-X001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Estimated Pruduction Lead Time 19 Weeks
Features Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -55°C ~ 100°C
Mounting Surface Mount
Package 4-SMD, Gull Wing
Case / Package 4-SOP (2.54mm)
Family Name SFH690
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 894247-SFH690B-X001T
Ultra Librarian 3D Model Ultra Librarian SFH690B-X001T CAD Model

Description

The Vishay SFH690B-X001T is an optoisolator transistor output that is designed for high-speed switching applications.

  • Voltage: 3750Vrms
  • Input Current: low
  • Noise Immunity: high
  • Package: 4-SMD, Gull Wing
  • Popularity: high
  • Supply and Demand Status: balance
  • REACH: unaffected
