Same model may have multiple batches, images only for reference.

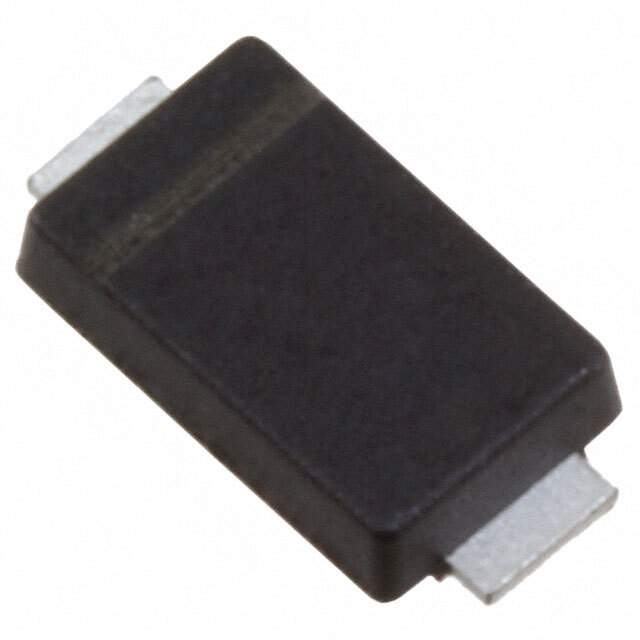

SE30PABHM3/I Real Image
Same model may have multiple batches, images only for reference.

SE30PABHM3/I

Part No SE30PABHM3/I
Manufacturer Vishay
Catalog TVS - Diodes
Description DIODE GEN PURP 600V 3A DO221BC / Diode Standard 600 V 3A Surface Mount DO-221BC (SMPA)
Datasheet
SE30PABHM3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, eSMP®
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.16 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.3 µs
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Capacitance @ Vr, F 13pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package DO-221BC (SMPA)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number SE30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 112-SE30PABHM3/ITR,SE30PABHM3/I-ND,112-SE30PABHM3/ICT,112-SE30PABHM3/IDKR
Standard Package 14,000
Win Source Part Number 1166453-SE30PABHM3/I
Ultra Librarian 3D Model Ultra Librarian SE30PABHM3/I CAD Model

Description

The Vishay General Semiconductor - Diodes Division SE30PABHM3/I is a rectifier diode with a maximum DC reverse voltage of 600V and an average rectified current of 3A.

  • Forward Voltage: 1.16V @ 3A
  • Reverse Recovery Time: 1.3µs
  • Package/Case: DO-221BC, SMA Flat Leads Exposed Pad
  • Application: automotive applications
  • AEC-Q101: compliant
  • Operating Temperature Range: -55°C to 175°C
  • REACH: unaffected
  • ECCN: EAR99
  • Packaging: tape and reel
  • Standard Package: 14,000
