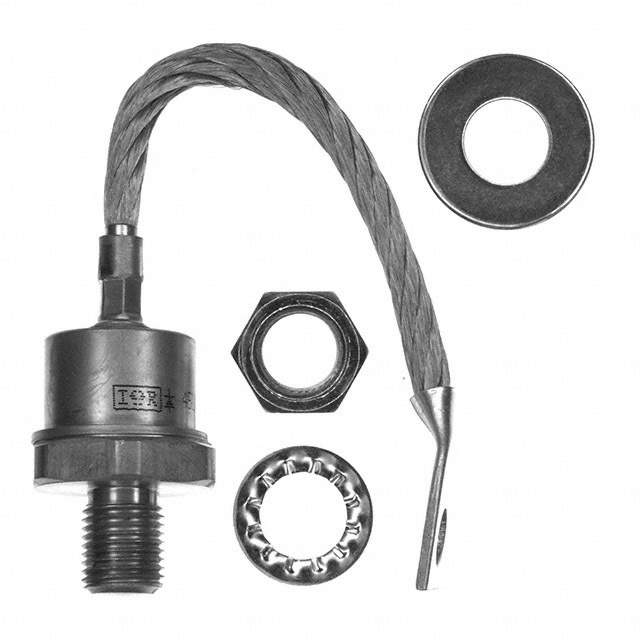

SD103R20S20PC Real Image
Same model may have multiple batches, images only for reference.

SD103R20S20PC

Part No SD103R20S20PC
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SD103R20S20PC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 2000 V
Current - Average Rectified (Io) 110A
Voltage - Forward (Vf) (Max) @ If 2.23 V @ 345 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2 µs
Current - Reverse Leakage @ Vr 35 mA @ 2000 V
Mounting Type Stud Mount
Package / Case DO-205AC, DO-30, Stud
Supplier Device Package DO-205AC (DO-30)
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number SD103
Other Names *SD103R20S20PC
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281959-SD103R20S20PC
Ultra Librarian 3D Model Ultra Librarian SD103R20S20PC CAD Model

Description

The SD103R20S20PC is a standard diode from Vishay General Semiconductor - Diodes Division.

  • Voltage Rating: 2000 V
  • Current Rating: 110 A
  • Recovery Speed: Standard, more than 500 ns
  • Maximum Forward Voltage: 2.23 V @ 345 A
  • Reverse Recovery Time: 2 µs
  • Reverse Leakage Current: 35 mA @ 2000 V
  • Mounting Type: Stud Mounting
  • Package: DO-205AC, DO-30, Stud
  • RoHS: Non-compliant
  • ECCN: EAR99
