Same model may have multiple batches, images only for reference.

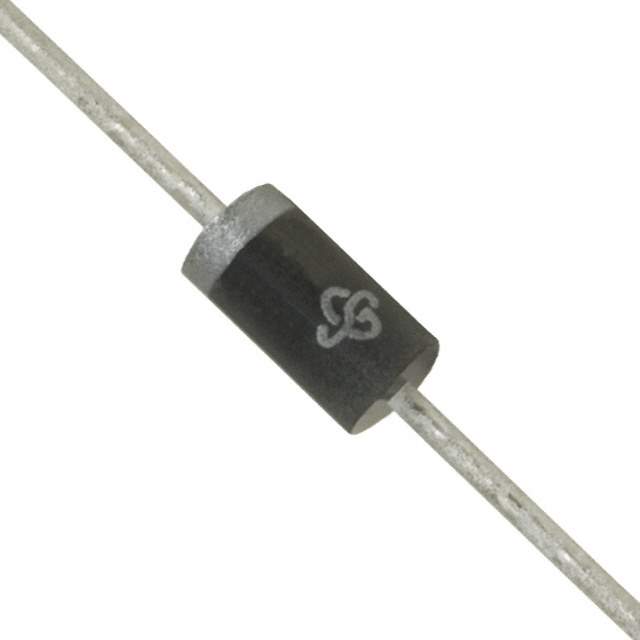

SB2H100-E3/54 Real Image
Same model may have multiple batches, images only for reference.

SB2H100-E3/54

Part No SB2H100-E3/54
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description High-Voltage Schottky Rectifier | DIODE SCHOTTKY 100V 2A DO204AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Cut Tape (CT)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Maximum) at If 790mV at 2A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 10μA at 100V
Mounting Style Through Hole
Manufacturer Package DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Operating Temperature - Junction -55°C ~ 175°C
Family Part Number SB2H100
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 734251-SB2H100-E3/54
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SB2H100-E3/54 CAD Model

Description

The SB2H100-E3/54 is a fast recovery Schottky diode manufactured by Vishay Semiconductor Diodes Division.

  • Current - Average Rectified (Io): 2A
  • Voltage - DC Reverse (Vr) (maximum): 100V
  • Packaging: Cut Tape (CT)
  • Mounting Style: Through Hole
  • MSL Level: 1 (Unlimited)
  • Operating Temperature: -55°C to 175°C
