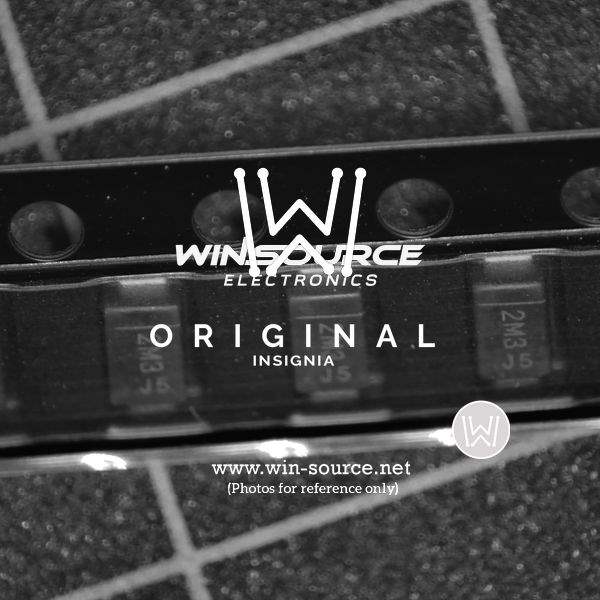

SA2M-E3/61T Real Image SA2M-E3/61T real image11003 SA2M-E3/61T Real Image
SA2M-E3/61T Real Image SA2M-E3/61T real image11003 SA2M-E3/61T Real Image
Same model may have multiple batches, images only for reference.

SA2M-E3/61T

Part No SA2M-E3/61T
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Switching 1KV 2A 1500ns 2-Pin SMA T/R / DIODE GEN PURP 1KV 2A DO214AC
Datasheet
SA2M-E3/61T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 2A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5μs
Current - Reverse Leakage @ Vr 3μA @ 1000V
Capacitance @ Vr, F 11pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AC (SMA)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1094299-SA2M-E3/61T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SA2M
Introduction Date August 28, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SA2M-E3/61T CAD Model

Description

The Vishay 1094299-SA2M-E3/61T is a standard diode that is surface mounted (SMD) and belongs to the discrete semiconductor products category.

  • Maximum DC Reverse Voltage: 1000V
  • Average Rectified Current: 2A
  • Package: DO-214AC (SMA)
  • Operating Temperature Range: -55°C to 150°C
