Same model may have multiple batches, images only for reference.

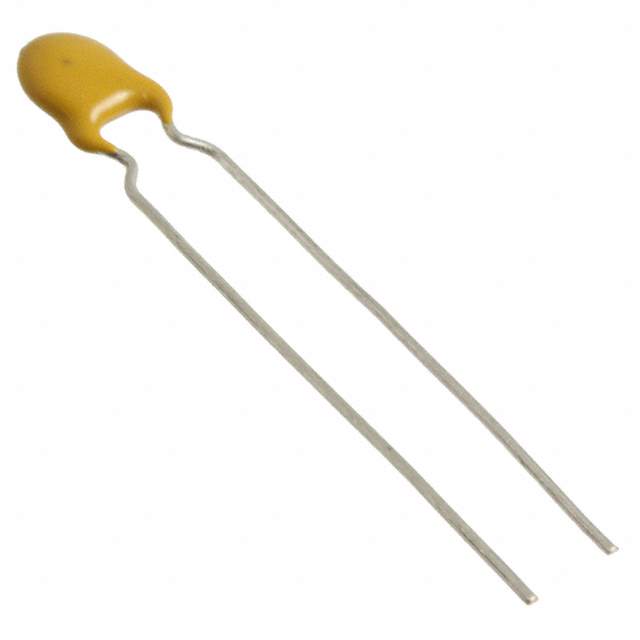

S680K29SL0N6UJ5R Real Image
Same model may have multiple batches, images only for reference.

S680K29SL0N6UJ5R

Part No S680K29SL0N6UJ5R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 68PF 1KV SL RADIAL / 68 pF ±10% 1000V (1kV) Ceramic Capacitor SL Radial, Disc
Datasheet
S680K29SL0N6UJ5R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Tape & Box (TB)
Capacitance 68 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient SL
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Standard Package 2,000
Win Source Part Number 984615-S680K29SL0N6UJ5R
Ultra Librarian 3D Model Ultra Librarian S680K29SL0N6UJ5R CAD Model

Description

The S680K29SL0N6UJ5R is a ceramic capacitor product that belongs to the category of electronic components.

  • Temperature Range: -55°C to 125°C
  • Package: Radial, disc
  • Packaging: Tape and box
  • Mounting: Through-hole mountable
  • Capacitance: 68 pF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±10%
  • Description: High-quality and reliable product suitable for various electronic applications.
