Same model may have multiple batches, images only for reference.

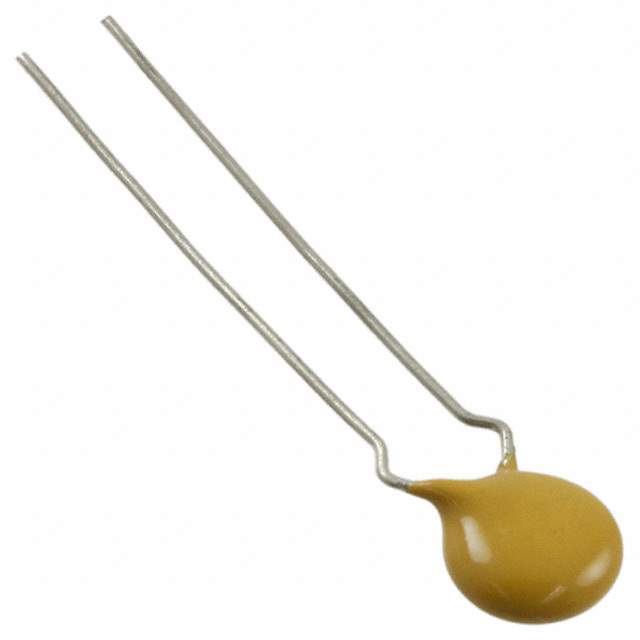

S102M29Z5UP6UK5R Real Image
Same model may have multiple batches, images only for reference.

S102M29Z5UP6UK5R

Part No S102M29Z5UP6UK5R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 1000PF 2KV Z5U RADIAL / 1000 pF ±20% 2000V (2kV) Ceramic Capacitor Z5U Radial, Disc
Datasheet
S102M29Z5UP6UK5R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Tape & Box (TB)
Capacitance 1000 pF
Tolerance ±20%
Voltage - Rated 2000V (2kV)
Temperature Coefficient Z5U
Temperature Range - Operating -30°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Standard Package 1,500
Win Source Part Number 988220-S102M29Z5UP6UK5R
Ultra Librarian 3D Model Ultra Librarian S102M29Z5UP6UK5R CAD Model

Description

The S102M29Z5UP6UK5R is a ceramic capacitor with a capacitance of 1000 pF and a voltage rating of 2000V from Vishay Beyschlag/Draloric/BC Components.

  • Capacitance: 1000 pF
  • Voltage Rating: 2000V
  • Tolerance: ±20%
  • Temperature Coefficient: Z5U
  • Application: General Purpose
  • Packaging: Tape and box (TB)
  • Leads: Formed, kinked
  • Package: Radial, disc
  • Mounting: Through-hole
  • Operating Temperature Range: -30°C and 125°C
