Same model may have multiple batches, images only for reference.

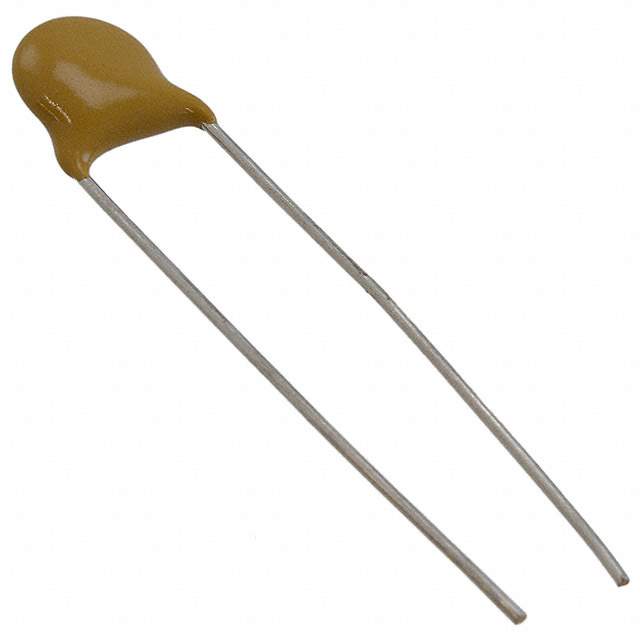

S101K29SL0N6UJ5R Real Image
Same model may have multiple batches, images only for reference.

S101K29SL0N6UJ5R

Part No S101K29SL0N6UJ5R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 100PF 1KV SL RADIAL / 100 pF ±10% 1000V (1kV) Ceramic Capacitor SL Radial, Disc
Datasheet
S101K29SL0N6UJ5R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Cut Tape (CT),Tape & Box (TB)
Capacitance 100 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient SL
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Other Names BC5244TB,BC5244TB-ND,BC5244CT,56-S101K29SL0N6UJ5RTB,S101K29SL0N6UJ5R-ND
Standard Package 2,000
Win Source Part Number 972247-S101K29SL0N6UJ5R
Ultra Librarian 3D Model Ultra Librarian S101K29SL0N6UJ5R CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components S101K29SL0N6UJ5R is a ceramic capacitor with a capacitance of 100 pF and voltage rated @ 1000V (1kV).

  • Capacitance: 100 pF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±10%
  • Temperature Coefficient: SL
  • Series: S
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Lead Style: Straight
  • Package: Radial, Disc
  • Dimension: 0.295" Dia (7.50mm)
  • REACH: Compliant
  • AEC-Q200: Unaffected
