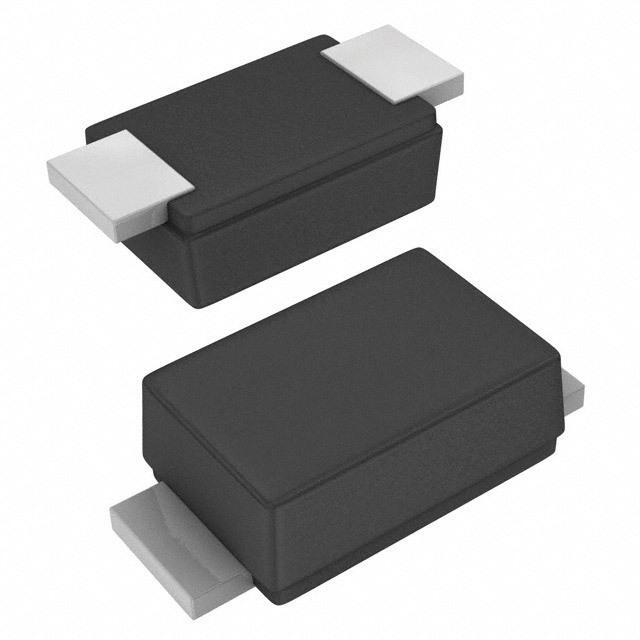

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V (1kV)
Current - Average Rectified (Io) 700mA
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.8μs
Current - Reverse Leakage @ Vr 10μA @ 1000V
Capacitance @ Vr, F 4pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-219AB (SMF)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 185157-S07M
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian S07M CAD Model

Description

This electronic component is a standard SMD (SMT) diode manufactured by Vishay.

  • Diode Type: The diode type is standard with a maximum voltage of 1000V (1kV) and an average rectified current of 700mA.
  • Voltage Forward (Vf): The voltage forward (Vf) is 1.1V @ 1A.
  • Reverse Recovery Time (trr): and the reverse recovery time (trr) is 1.8μs.
  • Current Reverse Leakage: The current reverse leakage at Vr is 10μA @ 1000V.
  • Capacitance: and the capacitance at Vr, F is 4pF @ 4V, 1MHz.
  • Operating Temperature Range: The operating temperature range is from -55°C to 150°C.
  • Supply and Demand: The supply and demand status of this product is sufficient.
