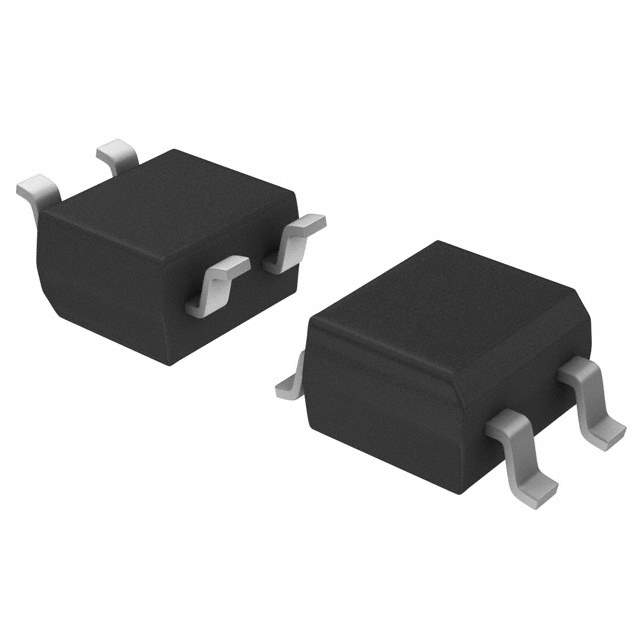

RMB4S-E3/45 Real Image
Same model may have multiple batches, images only for reference.

RMB4S-E3/45

Part No RMB4S-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 3P 400V TO269AA  /  Bridge Rectifier Single Phase Standard 400 V Surface Mount TO-269AA (MBS)
Datasheet
RMB4S-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 400 mA
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case TO-269AA, 4-BESOP
Supplier Device Package TO-269AA (MBS)
Base Product Number RMB4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names RMB4S,RMB4S/45-ND,RMB4S/45,RMB4S-E3/45-ND,RMB4S-E3/45GI,RMB4S-ND
Standard Package 50
Win Source Part Number 1130352-RMB4S-E3/45
Ultra Librarian 3D Model Ultra Librarian RMB4S-E3/45 CAD Model

Description

This electronic component is a diode bridge rectifier manufactured by Vishay General Semiconductor - Diodes Division.

  • Win Source Part Number: 1130352-RMB4S-E3/45
  • Diode Type: Single-Phase
  • Technology Standard: Yes
  • Current Average Rectified (Io): 500mA
  • Voltage Forward (Vf) (Max) @ If: 1.25V @ 400mA
  • Current Reverse Leakage @ Vr: 5µA @ 400V
  • Voltage Peak Reverse (Max): 400V
  • Package/Case Size: TO-269AA, 4-BESOP
  • Supplier Device Package: TO-269AA (MBS)
  • Operating Temperature Range: -55°C to 150°C (TJ)
